Product number
6721405V3LM11

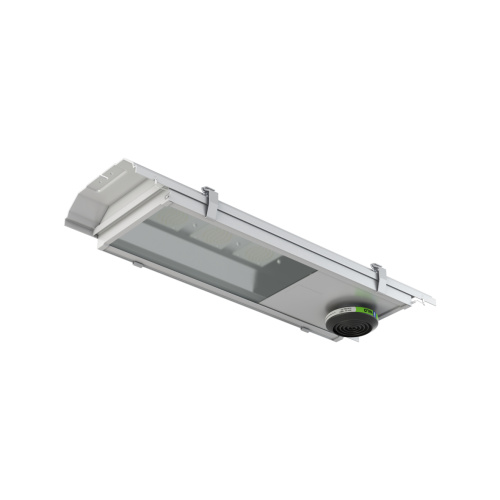

Industrial LED luminaire 6721LED 54 W IP65
Compact and durable LED luminaire for the general lighting of low and medium high spaces. Suitable for applications such as warehouses, ground floors, power plants and boilers, corridors, stairwells and maintenance platforms in pulp and paper mills, and parking areas.
Additional information
| Note | The luminaire is equipped with a DALI driver. The luminaire can be connected to the DALI bus with a suitable connecting cable. |
| Storage RH% Max. | 85 (Not condensed) |
| Calculated lifetime Ta max L80 (h) | 67000 |
| Confirmed data | Yes |
| Warranty | 5 years |
| Calculated lifetime Ta 25 °C L80 (h) | 72000 |
Basic information
| Certificates | UKCA;CE |
| Recommended Products | No |
| Installation | Surface mounting |
| Estimated delivery time from factory | 2 - 3 weeks |
| Country of manufacture | Finland |
| Trading product | No |

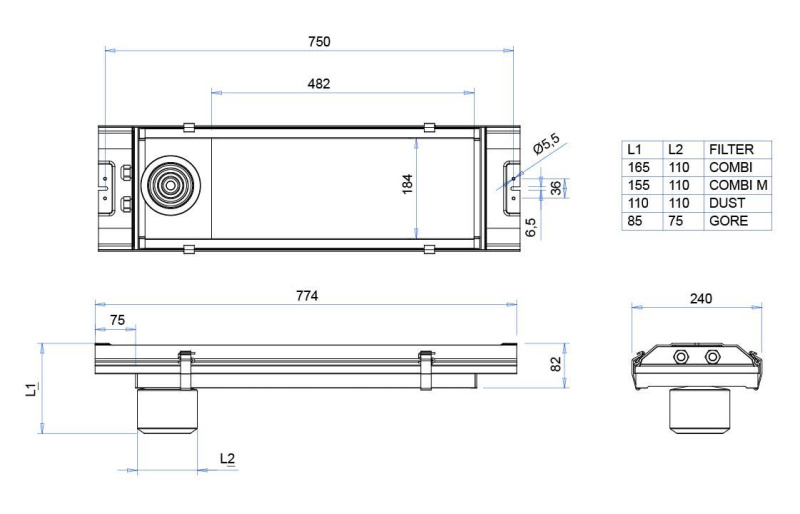

Dimensions
| Product width (mm) | 240 |
| Product weight (Kg) | 5.50 |
| Package height (mm) | 190 |
| Package length (mm) | 790 |
| Package weight (Kg) | 6.10 |
| Package width (mm) | 290 |
| Product length (mm) | 774 |
| Product height (mm) | 112 |
Electrical information
| Voltage (V) | 220-240 |
| Inrush time (μs) | 280 |
| Frequency (Hz) | 0/50/60 |
| DC voltage | Yes |
| Number of ballasts | 1 |
| Input power (W) | 54 |
| Number of luminaires per automatic circuit breaker B16A | 24 |
| Start-up (A) | 25.00 |
| Number of luminaires per automatic circuit breaker B10A | 13 |
| Power factor | 0.96 |
| Number of luminaires per automatic circuit breaker C10A | 19 |
| Number of luminaires per automatic circuit breaker C16A | 36 |
Light Source
| Efficacy of the luminaire Ta +25 °C (lm/W) | 132 |
| Colour temperature | 4000 K |
| MacAdam value | 3 SDCM |
| ILCOS code | DS |
| Colour rendering index | Ra ≥80 |
| Light source | LED |
| Lamp holder | LED module |
| Luminous flux (luminaire) Ta +25 °C (lm) | 7150 |
| Energy efficiency class of the light source | C |
| Efficacy of the luminaire max Ta (lm/W) | 128 |
| Number of light sources | 3 |
| Luminous flux (luminaire) max Ta (lm) | 6900 |
Structure and optics

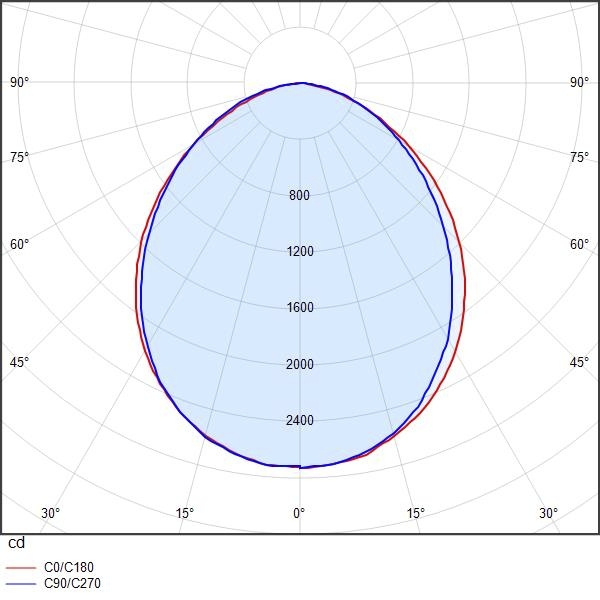

| Light distribution | Wide |
| Coating thickness (μm) | 80-100 |
| Connection | Cable and Schuko plug (IP44) 1.5 m |
| Upgradability | Yes |
| Colour | Light grey |
| Filter | Dust filter |
| Body material | Polyester-coated aluminium |
| Cover material | Tempered safety glass, frosted |
| Corrosivity category of the coating | Suitable for environments classified as C5/very high corrosivity |
| Linkability | Yes |
| RAL colour | RAL 7047 |
Technical information
| Control | ON/OFF |
| IP rating | IP65 |
| IK code | IK07 |
| Ta-class min. (°C) | -25 |
| Ta-class max. (°C) | +55 |
| Protection class | I |
| D-marking | Yes |
