Product number
DA40M000DB

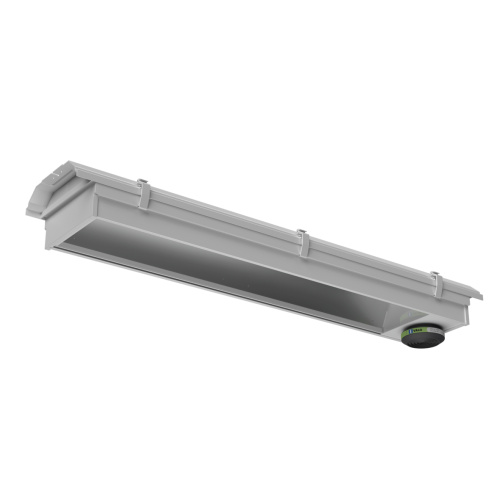

Industrial LED luminaire DAVI 119 W IP65
DAVI is a top-quality LED luminaire with an update possibility, designed especially for the lighting needs of the industry. The technology of this luminaire is replaceable, which means that the whole luminaire does not need to be replaced when it reaches the end of its lifespan. The availability of spare parts is guaranteed by constantly using the latest LED technology, which will always fit into the same frame. The very robust mechanical structure of the luminaire is familiar from I-Valo's traditional lowbay luminaires, which have been appreciated on the market for decades. Installation is easy thanks to I-Valo's comprehensive range of brackets for lowbay luminaires. DAVI is equipped with I-Valo's efficient filtering technology.
Additional information
| Calculated lifetime Ta 25 °C L80 (h) | 80000 |
| Storage RH% Max. | 85 (Not condensed) |
| Note | The luminaire is equipped with a DALI driver. The luminaire can be connected to the DALI bus with a suitable connecting cable. |
| Calculated lifetime Ta max L80 (h) | 80000 |
| Confirmed data | Yes |
| Warranty | 5 years |
Basic information
| Installation | Surface mounting |
| Estimated delivery time from factory | 2 - 3 weeks |
| Country of manufacture | Finland |
| Recommended Products | No |
| Certificates | UKCA;CE |
| Trading product | No |

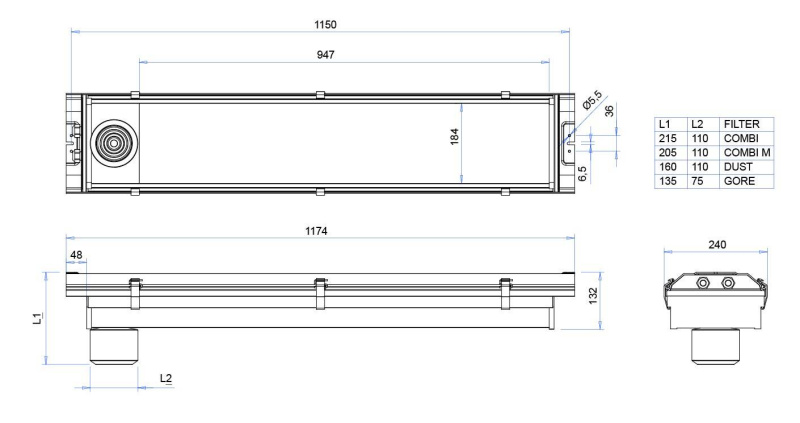

Dimensions
| Package weight (Kg) | 12.40 |
| Product width (mm) | 240 |
| Package height (mm) | 190 |
| Package length (mm) | 1190 |
| Product weight (Kg) | 11.50 |
| Product length (mm) | 1174 |
| Package width (mm) | 290 |
| Product height (mm) | 160 |
Electrical information
| Voltage (V) | 220-240 |
| Inrush time (μs) | 280 |
| Frequency (Hz) | 0/50/60 |
| DC voltage | Yes |
| Number of luminaires per automatic circuit breaker B10A | 6 |
| Number of luminaires per automatic circuit breaker C10A | 9 |
| Power factor | 0.95 |
| Input power (W) | 119 |
| Number of ballasts | 2 |
| Number of luminaires per automatic circuit breaker C16A | 18 |
| Start-up (A) | 50.00 |
| Number of luminaires per automatic circuit breaker B16A | 12 |
| Mains current (A) | 0.52 |
Light Source
| Constant light output (CLO) | No |
| ILCOS code | DS |
| MacAdam value | 3 SDCM |
| Energy efficiency class of the light source | C |
| Colour temperature | 4000 K |
| Colour rendering index | Ra >80 |
| Luminous flux (luminaire) Ta +25 °C (lm) | 20000 |
| Lamp holder | LED module |
| Light source | LED |
| Efficacy of the luminaire Ta +25 °C (lm/W) | 168 |
| Efficacy of the luminaire max Ta (lm/W) | 165 |
| Number of light sources | 4 |
| Luminous flux (luminaire) max Ta (lm) | 19600 |
Structure and optics
| Coating thickness (μm) | 80-100 |
| Connection | Cable and Schuko plug (IP44) 1.5 m |
| Filter | Dust filter |

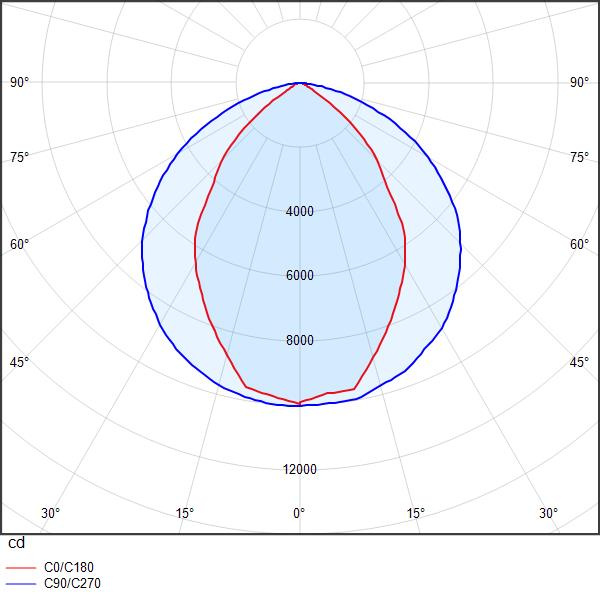

| Light distribution | Medium wide |
| Upgradability | Yes |
| Colour | Light grey |
| Linkability | Yes |
| Cover material | Tempered safety glass, clear |
| Corrosivity category of the coating | Suitable for environments classified as C5/very high corrosivity |
| Body material | Polyester-coated aluminium |
| RAL colour | RAL 7047 |
Technical information
| IP rating | IP65 |
| D-marking | Yes |
| IK code | IK08 |
| Control | ON/OFF |
| Ta-class max. (°C) | +45 |
| Protection class | I |
| Ta-class min. (°C) | -25 |
