Product number
DA40X100DTW

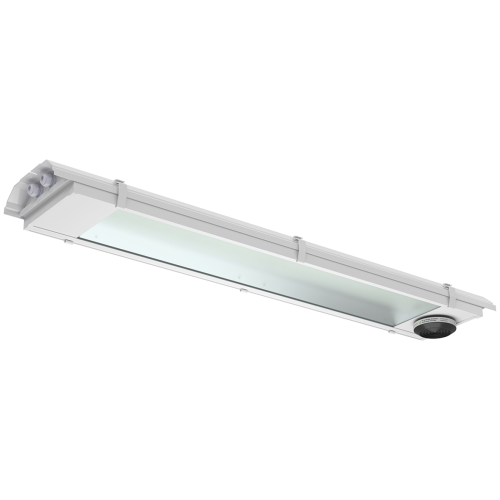

Industrial LED luminaire DAVI 119 W IP65
DAVI is a top-quality LED luminaire with an update possibility, designed especially for the lighting needs of the industry. The technology of this luminaire is replaceable, which means that the whole luminaire does not need to be replaced when it reaches the end of its lifespan. The availability of spare parts is guaranteed by constantly using the latest LED technology, which will always fit into the same frame. The very robust mechanical structure of the luminaire is familiar from I-Valo's traditional lowbay luminaires, which have been appreciated on the market for decades. Installation is easy thanks to I-Valo's comprehensive range of brackets for lowbay luminaires. DAVI is equipped with I-Valo's efficient filtering technology.
Basic information
Certificates
UKCA;CE
Country of manufacture
Finland
Estimated delivery time from factory
2 - 3 weeks
Installation
Surface mounting
Wind surface (m²)
0.32
Technical information
IK code
IK08
IP rating
IP65
Control
DALI-2, ON/OFF
D-marking
Yes
Protection class
I
Ta-class max. (°C)
+45
Ta-class min. (°C)
-25
Electrical information
Number of luminaires per automatic circuit breaker B10A
6
Number of luminaires per automatic circuit breaker B16A
12
Number of luminaires per automatic circuit breaker C10A
9
Number of luminaires per automatic circuit breaker C16A
18
DC voltage
Yes
Frequency (Hz)
0/50/60
Input power (W)
119
Mains current (A)
0.52
Number of ballasts
2
Power factor
0.95
Start-up (A)
50.00
Inrush time (μs)
280
Voltage (V)
220-240
Light Source
Constant light output (CLO)
No
Colour temperature
4000 K
Efficacy of the luminaire max Ta (lm/W)
156
Efficacy of the luminaire Ta +25 °C (lm/W)
160
Energy efficiency class of the light source
C
ILCOS code
DS
Lamp holder
LED module
Light source
LED
Luminous flux (luminaire) max Ta (lm)
18600
Luminous flux (luminaire) Ta +25 °C (lm)
19000
MacAdam value
3 SDCM
Number of light sources
4
Colour rendering index
Ra >80
Structure and optics
Body material
Polyester-coated aluminium
RAL colour
RAL 7047
Colour
Light grey
Coating thickness (μm)
80-100
Connection
Through-wiring (5 × 2,5 mm² + 2 × 2,5 mm²)
Corrosivity category of the coating
Suitable for environments classified as C5/very high corrosivity
Cover material
Tempered safety glass, frosted
Filter
Dust filter

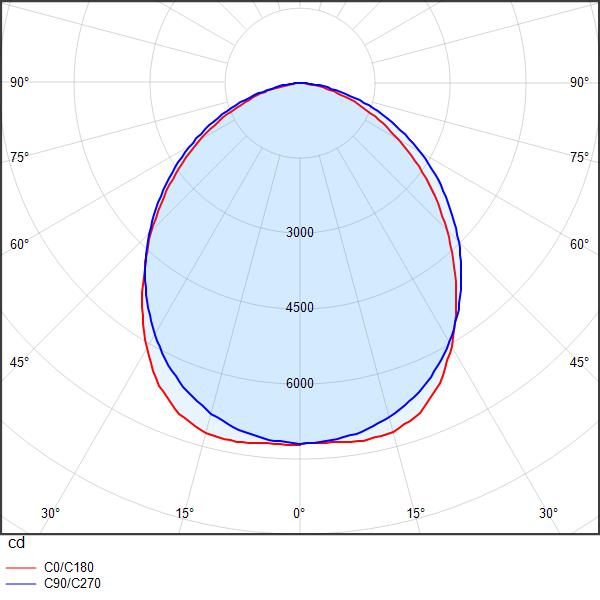

Light distribution
Wide
Linkability
Yes
Upgradability
Yes

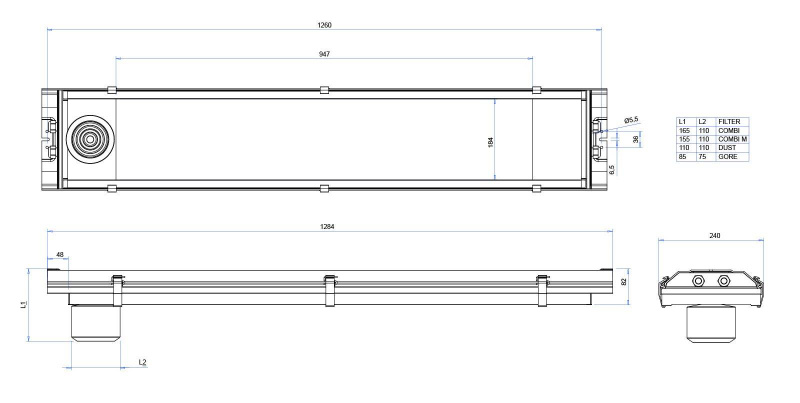

Dimensions
Product height (mm)
110
Product length (mm)
1284
Product weight (Kg)
10.90
Product width (mm)
240
Package height (mm)
150
Package length (mm)
1460
Package weight (Kg)
12.10
Package width (mm)
280
Additional information
Calculated lifetime Ta 25 °C L80 (h)
80000
Calculated lifetime Ta max L80 (h)
80000
Storage RH% Max.
85 (Not condensed)
Warranty
5 years
