Product number
DN10X000DA

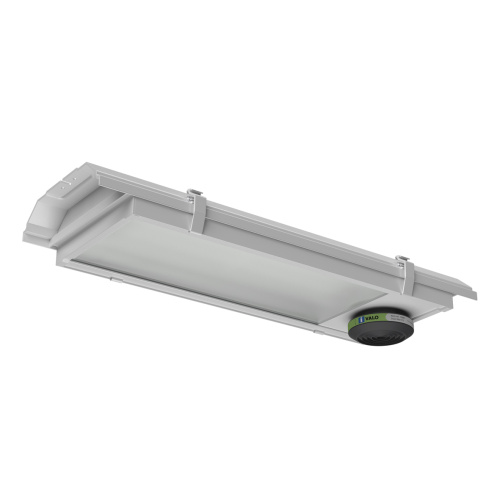

Industrial LED luminaire DAVI 31 W IP65
DAVI is a top-quality LED luminaire with an update possibility, designed especially for the lighting needs of the industry. The technology of this luminaire is replaceable, which means that the whole luminaire does not need to be replaced when it reaches the end of its lifespan. The availability of spare parts is guaranteed by constantly using the latest LED technology, which will always fit into the same frame. The very robust mechanical structure of the luminaire is familiar from I-Valo's traditional lowbay luminaires, which have been appreciated on the market for decades. Installation is easy thanks to I-Valo's comprehensive range of brackets for lowbay luminaires. DAVI is equipped with I-Valo's efficient filtering technology.
Additional information
| Storage RH% Max. | 85 (Not condensed) |
| Warranty | 5 years |
| Confirmed data | Yes |
| Calculated lifetime Ta 25 °C L80 (h) | 80000 |
| Calculated lifetime Ta max L80 (h) | 80000 |
Basic information
| Certificates | UKCA;CE |
| Recommended Products | No |
| Installation | Surface mounting |
| Estimated delivery time from factory | 2 - 3 weeks |
| Trading product | No |
| Country of manufacture | Finland |

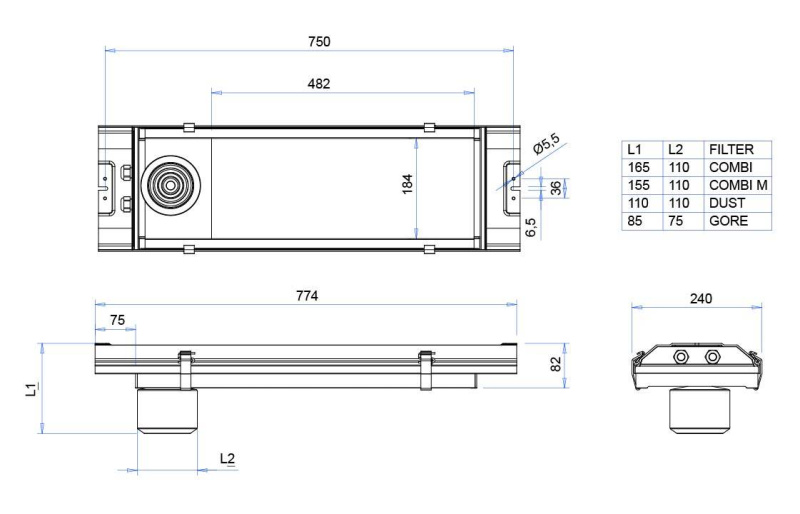

Dimensions
| Product width (mm) | 240 |
| Product weight (Kg) | 6.00 |
| Package height (mm) | 190 |
| Package length (mm) | 790 |
| Package weight (Kg) | 6.60 |
| Package width (mm) | 290 |
| Product length (mm) | 774 |
| Product height (mm) | 110 |
Electrical information
| Voltage (V) | 220-240 |
| Inrush time (μs) | 170 |
| DC voltage | Yes |
| Frequency (Hz) | 0/50/60 |
| Number of ballasts | 1 |
| Input power (W) | 31 |
| Number of luminaires per automatic circuit breaker B16A | 21 |
| Start-up (A) | 35.00 |
| Number of luminaires per automatic circuit breaker B10A | 13 |
| Power factor | 0.92 |
| Number of luminaires per automatic circuit breaker C10A | 21 |
| Number of luminaires per automatic circuit breaker C16A | 35 |
| Mains current (A) | 0.14 |
Light Source
| Colour temperature | 4000 K |
| MacAdam value | 3 SDCM |
| ILCOS code | DS |
| Colour rendering index | Ra >80 |
| Efficacy of the luminaire Ta +25 °C (lm/W) | 152 |
| Light source | LED |
| Lamp holder | LED module |
| Luminous flux (luminaire) Ta +25 °C (lm) | 4700 |
| Energy efficiency class of the light source | C |
| Constant light output (CLO) | No |
| Efficacy of the luminaire max Ta (lm/W) | 148 |
| Number of light sources | 1 |
| Luminous flux (luminaire) max Ta (lm) | 4600 |
Structure and optics

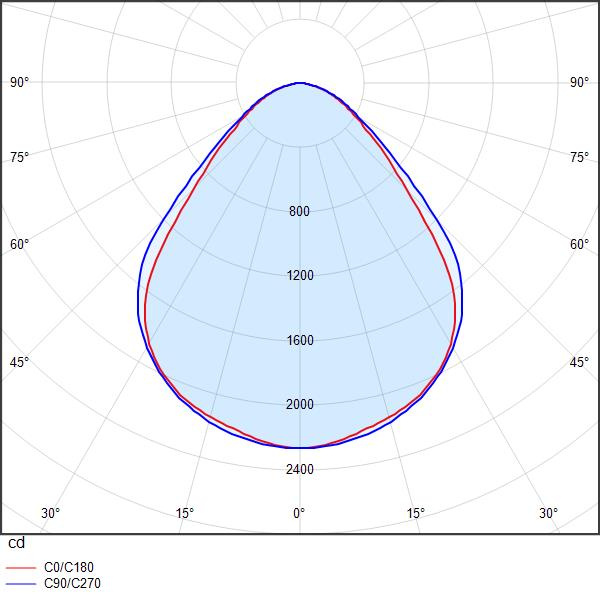

| Light distribution | Wide |
| Coating thickness (μm) | 80-100 |
| Connection | Pushwire terminals (5 × 2.5 mm² + 2 × 2.5 mm²) |
| Upgradability | Yes |
| Colour | Light grey |
| Filter | Dust filter |
| Body material | Polyester-coated aluminium |
| Corrosivity category of the coating | Suitable for environments classified as C5/very high corrosivity |
| Cover material | Tempered safety glass with anti-glare film |
| Linkability | Yes |
| RAL colour | RAL 7047 |
Technical information
| Control | DALI-2, ON/OFF |
| Ta-class min. (°C) | -30 |
| Protection class | I |
| D-marking | Yes |
| IK code | IK08 |
| IP rating | IP65 |
| Ta-class max. (°C) | +60 |
