Product number
DN21X100DTW

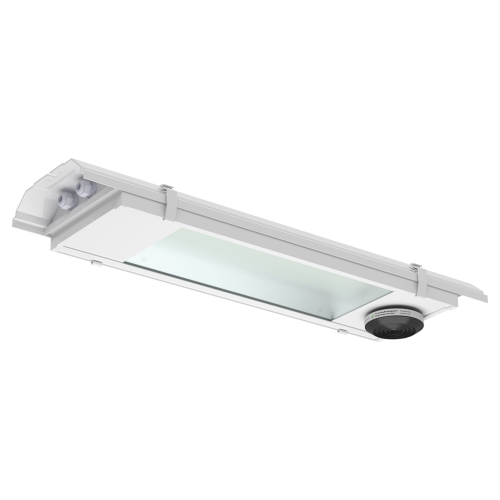

Industrial LED luminaire DAVI 78 W IP65
DAVI is a top-quality LED luminaire with an update possibility, designed especially for the lighting needs of the industry. The technology of this luminaire is replaceable, which means that the whole luminaire does not need to be replaced when it reaches the end of its lifespan. The availability of spare parts is guaranteed by constantly using the latest LED technology, which will always fit into the same frame. The very robust mechanical structure of the luminaire is familiar from I-Valo's traditional lowbay luminaires, which have been appreciated on the market for decades. Installation is easy thanks to I-Valo's comprehensive range of brackets for lowbay luminaires. DAVI is equipped with I-Valo's efficient filtering technology.
Additional information
| Storage RH% Max. | 85 (Not condensed) |
| Calculated lifetime Ta max L80 (h) | 80000 |
| Warranty | 5 years |
| Confirmed data | Yes |
| Calculated lifetime Ta 25 °C L80 (h) | 80000 |
Basic information
| Estimated delivery time from factory | 2 - 3 weeks |
| Certificates | UKCA;CE |
| Recommended Products | No |
| Installation | Surface mounting |
| Wind surface (m²) | 0.22 |
| Trading product | No |
| Country of manufacture | Finland |

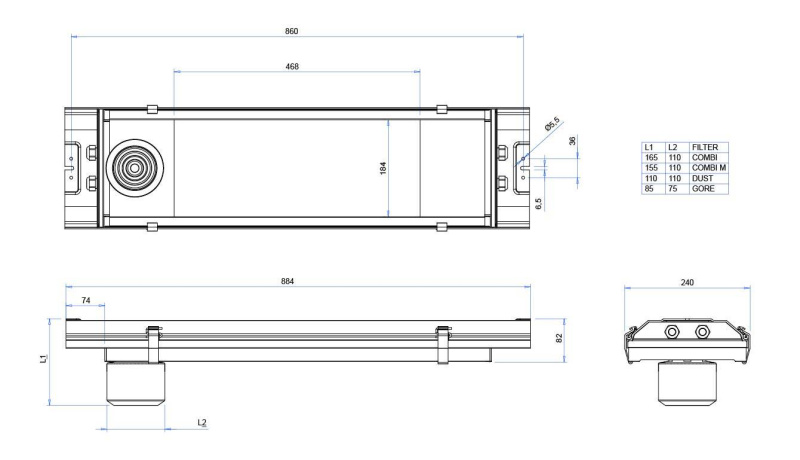

Dimensions
| Package height (mm) | 110 |
| Product width (mm) | 240 |
| Product weight (Kg) | 6.60 |
| Package length (mm) | 1200 |
| Package weight (Kg) | 7.20 |
| Product height (mm) | 110 |
| Package width (mm) | 250 |
| Product length (mm) | 884 |
Electrical information
| Voltage (V) | 220-240 |
| DC voltage | Yes |
| Inrush time (μs) | 280 |
| Frequency (Hz) | 0/50/60 |
| Input power (W) | 78 |
| Number of ballasts | 1 |
| Start-up (A) | 25.00 |
| Number of luminaires per automatic circuit breaker B16A | 24 |
| Number of luminaires per automatic circuit breaker B10A | 13 |
| Number of luminaires per automatic circuit breaker C10A | 19 |
| Power factor | 0.95 |
| Number of luminaires per automatic circuit breaker C16A | 36 |
| Mains current (A) | 0.33 |
Light Source
| ILCOS code | DS |
| Colour temperature | 4000 K |
| MacAdam value | 3 SDCM |
| Constant light output (CLO) | No |
| Luminous flux (luminaire) Ta +25 °C (lm) | 12800 |
| Colour rendering index | Ra >80 |
| Efficacy of the luminaire Ta +25 °C (lm/W) | 164 |
| Lamp holder | LED module |
| Light source | LED |
| Energy efficiency class of the light source | B |
| Efficacy of the luminaire max Ta (lm/W) | 162 |
| Number of light sources | 2 |
| Luminous flux (luminaire) max Ta (lm) | 12600 |
Structure and optics
| Filter | Dust filter |

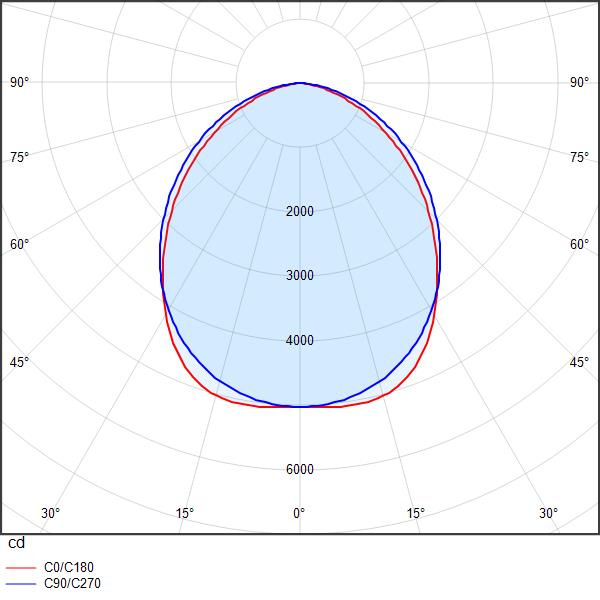

| Light distribution | Wide |
| Coating thickness (μm) | 80-100 |
| Connection | Through-wiring (5 × 2,5 mm² + 2 × 2,5 mm²) |
| Upgradability | Yes |
| Colour | Light grey |
| Corrosivity category of the coating | Suitable for environments classified as C5/very high corrosivity |
| Body material | Polyester-coated aluminium |
| Cover material | Tempered safety glass, frosted |
| Linkability | Yes |
| RAL colour | RAL 7047 |
Technical information
| Control | DALI-2, ON/OFF |
| Ta-class min. (°C) | -25 |
| Protection class | I |
| D-marking | Yes |
| IK code | IK08 |
| IP rating | IP65 |
| Ta-class max. (°C) | +40 |
