Product number
9701813200
Service pack LED EXIT Pro Battery 3 h 3 W

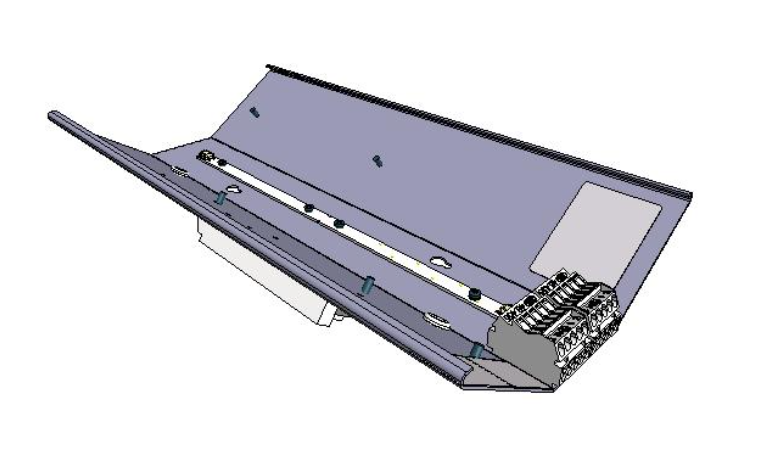

LED and driver replacement kit for the Pro battery version of the LED EXIT 9701 luminaire.
Basic information
Certificates
UKCA;CE
Country of manufacture
Finland
Estimated delivery time from factory
2 - 3 weeks
Technical information
Control
DALI
D-marking
Yes
Protection class
I
Ta-class max. (°C)
+45
Ta-class min. (°C)
5
Electrical information
Number of luminaires per automatic circuit breaker B10A
90
Number of luminaires per automatic circuit breaker B16A
130
Number of luminaires per automatic circuit breaker C10A
180
Number of luminaires per automatic circuit breaker C16A
260
DC voltage
Yes
Frequency (Hz)
50/60
Input power (W)
3
Number of ballasts
1
Power factor
0.50
Start-up (A)
10.00
Inrush time (μs)
120
Voltage (V)
200-240
Light Source
ILCOS code
DS
Lamp holder
LED module
Light source
LED
Number of light sources
1
Structure and optics
Body material
Polyester-coated aluminium
Colour
Light grey
Coating thickness (μm)
80-100
Linkability
Yes
Material
Aluminium
Upgradability
No
Longest visibility range (SFS-EN 1838)
36 m
Additional information
Warranty
5 years
