Product number
MA20X100CTW

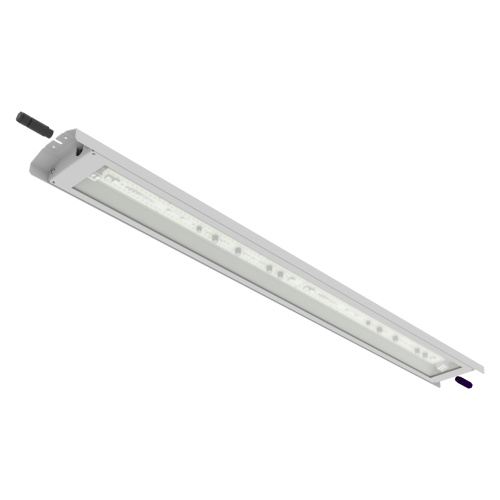

Industrial LED luminaire MARCO 53 W IP66
The MARCO luminaire has a low frame, but is despite its size robust, mechanically stable and well suited to the challenging conditions within the industry. The frame is made of polyester-coated aluminium and the cover glass of tempered glass. The luminaire is equipped with I-Valo filtering technology. The wide light distribution is suitable for corridors, maintenance bridges and other low spaces.
Additional information
| Storage RH% Max. | 75 (Not condensed) |
| Warranty | 5 years |
| Confirmed data | Yes |
| Calculated lifetime Ta 25 °C L80 (h) | 80000 |
| Calculated lifetime Ta max L80 (h) | 50000 |
Basic information
| Certificates | UKCA;CE |
| Recommended Products | No |
| Installation | Surface mounting |
| Estimated delivery time from factory | 2 - 3 weeks |
| Wind surface (m²) | 0.20 |
| Trading product | No |
| Country of manufacture | Finland |

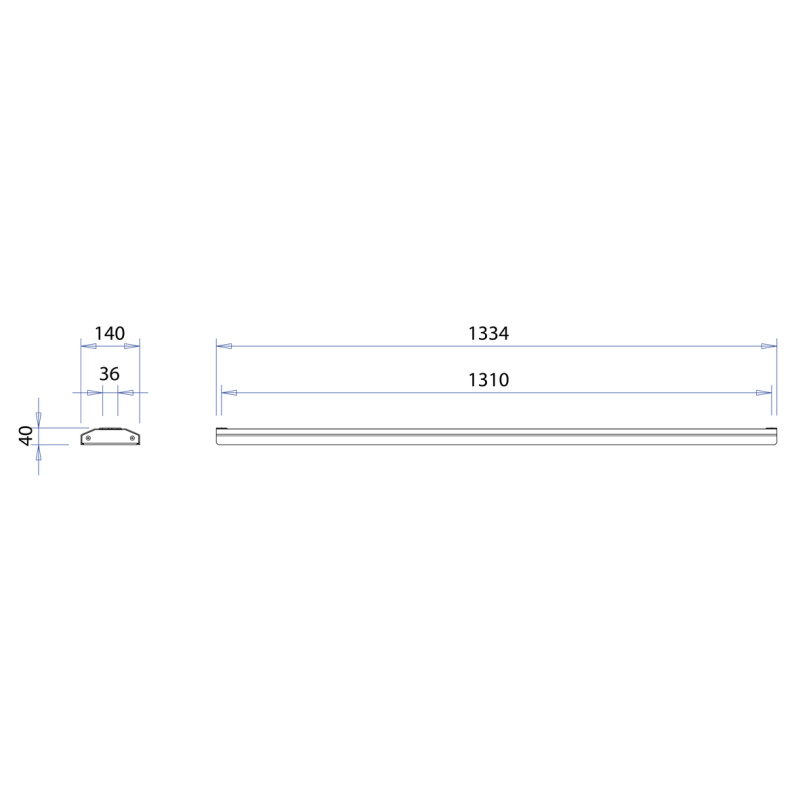

Dimensions
| Product width (mm) | 140 |
| Product weight (Kg) | 4.70 |
| Package height (mm) | 85 |
| Package length (mm) | 1375 |
| Package width (mm) | 150 |
| Product length (mm) | 1334 |
| Product height (mm) | 40 |
Electrical information
| DC voltage | No |
| Inrush time (μs) | 50 |
| Voltage (V) | 220-240 |
| Frequency (Hz) | 50/60 |
| Number of ballasts | 2 |
| Input power (W) | 53 |
| Number of luminaires per automatic circuit breaker B16A | 26 |
| Start-up (A) | 10.00 |
| Number of luminaires per automatic circuit breaker C10A | 16 |
| Power factor | 0.96 |
| Number of luminaires per automatic circuit breaker B10A | 16 |
| Number of luminaires per automatic circuit breaker C16A | 26 |
| Mains current (A) | 0.22 |
Light Source
| Colour temperature | 4000 K |
| MacAdam value | 3 SDCM |
| Energy efficiency class of the light source | D |
| Colour rendering index | Ra >80 |
| Lamp holder | LED module |
| Light source | LED DB |
| Efficacy of the luminaire max Ta (lm/W) | 137 |
| Number of light sources | 2 |
| Luminous flux (luminaire) max Ta (lm) | 7250 |
Structure and optics
| Connection | Through-wiring (3 × 1.5 mm²) |
| Coating thickness (μm) | 80-100 |

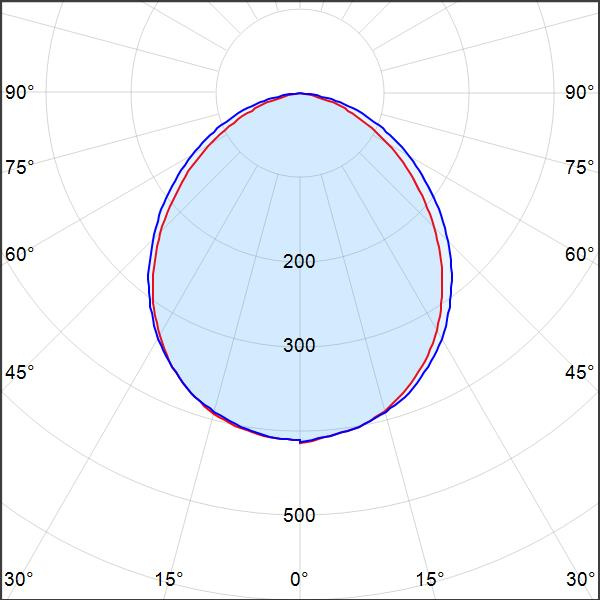

| Light distribution | Wide |
| Upgradability | No |
| Colour | Light grey |
| Filter | GORE filter |
| Corrosivity category of the coating | Suitable for environments classified as C5/very high corrosivity |
| Body material | Polyester-coated aluminium |
| Cover material | Tempered safety glass, frosted |
| Linkability | Yes |
| RAL colour | RAL 7047 |
Technical information
| Protection class | I |
| Control | ON/OFF |
| Ta-class max. (°C) | +50 |
| IK code | IK08 |
| Ta-class min. (°C) | -35 |
| D-marking | Yes |
| IP rating | IP66 |
