Product number
XE80M403DJ

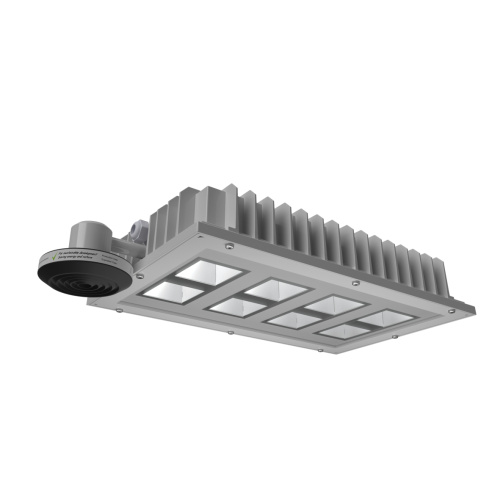

Industrial LED luminaire XENRE 221 W IP65
A robust top-quality LED luminaire for high installation heights. XENRE LED highbay luminaire is suitable for high industrial applications that demand particular durability of the luminaire. Typical locations for XENRE include machine shops, pulp and paper mills, sawmills, wood processing industry, warehouses etc. With polycarbonate closing cover XENRE is also suitable e.g. for food and beverage industry. Installation bracket is not included in the article number, but shall be ordered separately.
Additional information
| Confirmed data | Yes |
| Warranty | 5 years |
| Calculated lifetime Ta 25 °C L80 (h) | 100000 |
| Storage RH% Max. | 85 (Not condensed) |
| Calculated lifetime Ta max L80 (h) | 80000 |
Basic information
| Wind surface (m²) | 0.18 |
| Trading product | No |
| Estimated delivery time from factory | 2 - 3 weeks |
| Country of manufacture | Finland |
| Installation | Surface mounting |
| Recommended Products | No |
| Certificates | UKCA;CE |

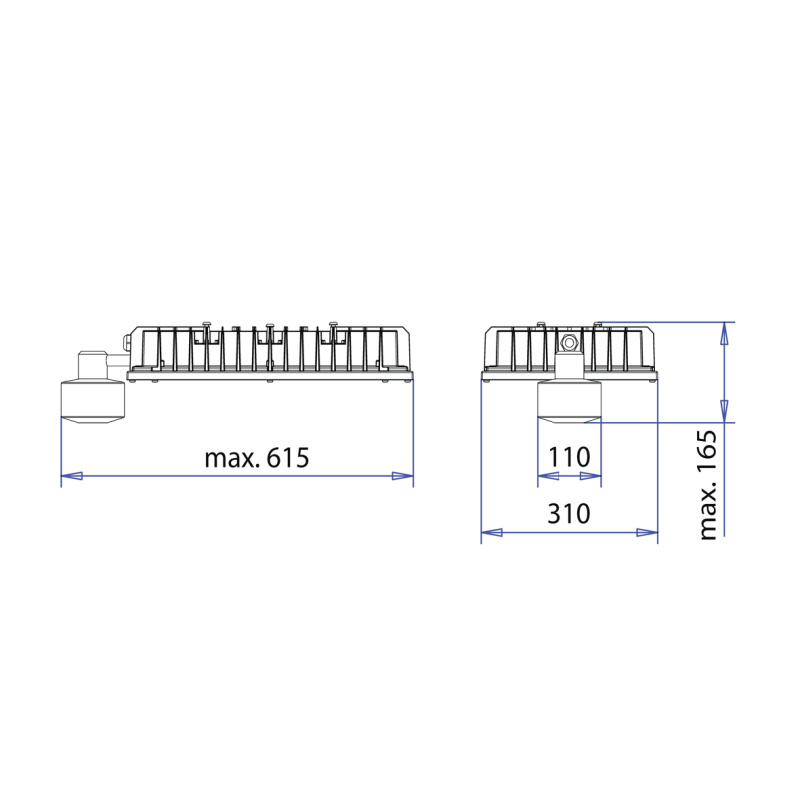

Dimensions
| Product width (mm) | 310 |
| Package height (mm) | 110 |
| Package length (mm) | 790 |
| Package weight (Kg) | 8.10 |
| Product weight (Kg) | 7.50 |
| Package width (mm) | 330 |
| Product height (mm) | 130 |
| Product length (mm) | 615 |
Electrical information
| DC voltage | Yes |
| Inrush time (μs) | 30 |
| Voltage (V) | 220-240 |
| Frequency (Hz) | 0/50/60 |
| Mains current (A) | 0.98 |
| Input power (W) | 221 |
| Number of luminaires per automatic circuit breaker C10A | 9 |
| Power factor | 0.98 |
| Number of luminaires per automatic circuit breaker C16A | 15 |
| Number of luminaires per automatic circuit breaker B16A | 10 |
| Number of ballasts | 2 |
| Number of luminaires per automatic circuit breaker B10A | 8 |
| Start-up (A) | 37.80 |
Light Source
| Luminous flux (luminaire) Ta +25 °C (lm) | 31800 |
| Lamp holder | LED module |
| Light source | LED |
| Efficacy of the luminaire Ta +25 °C (lm/W) | 144 |
| Colour rendering index | Ra >80 |
| ILCOS code | DS |
| Energy efficiency class of the light source | E |
| Colour temperature | 4000 K |
| MacAdam value | 3 SDCM |
| Efficacy of the luminaire max Ta (lm/W) | 136 |
| Luminous flux (luminaire) max Ta (lm) | 30100 |
| Number of light sources | 8 |
Structure and optics
| Replaceable LED driver | Yes |
| Body material | 100% recycled die-cast aluminum with a polyester coating |
| Connection | Cable 1.5 m (5 × 1.5 mm²) |
| Filter | Dust filter |
| Corrosivity category of the coating | Suitable for environments classified as C5/very high corrosivity |
| Cover material | Polycarbonate, PC |
| Linkability | No |

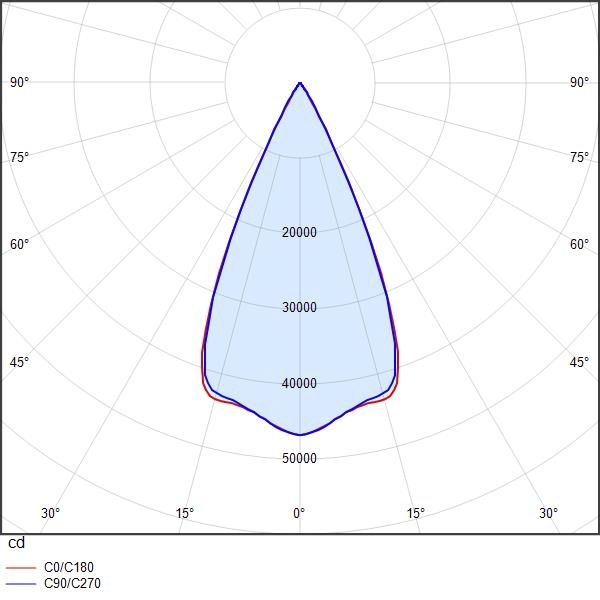

| Light distribution | Medium wide |
| Coating thickness (μm) | 80-100 |
| Colour | Light grey |
| RAL colour | RAL 7047 |
Technical information
| Ta-class min. (°C) | -40 |
| IP rating | IP65 |
| IK code | IK08 |
| D-marking | No |
| Protection class | I |
| Ta-class max. (°C) | +50 |
| Control | DALI-2, ON/OFF |
