Product number
XE67X401CJ

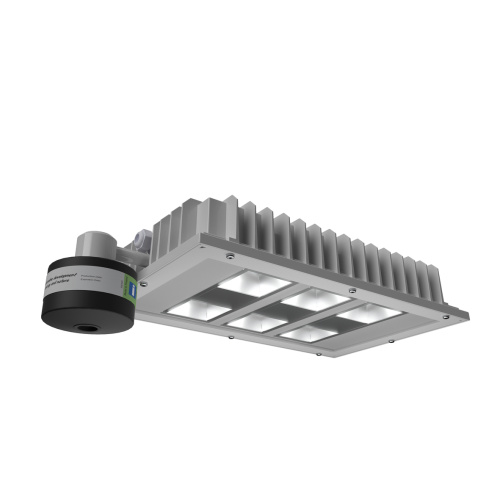

Industrial LED luminaire XENRE 212 W IP65
A robust top-quality LED luminaire for high installation heights. XENRE LED highbay luminaire is suitable for high industrial applications that demand particular durability of the luminaire. Typical locations for XENRE include machine shops, pulp and paper mills, sawmills, wood processing industry, warehouses etc. Installation bracket is not included in the article number, but shall be ordered separately.
Additional information
| Storage RH% Max. | 85 (Not condensed) |
| Calculated lifetime Ta max L80 (h) | 80000 |
| Calculated lifetime Ta 25 °C L80 (h) | 100000 |
| Confirmed data | Yes |
| Warranty | 5 years |
Basic information
| Wind surface (m²) | 0.18 |
| Installation | Surface mounting |
| Certificates | UKCA;CE |
| Estimated delivery time from factory | 2 - 3 weeks |
| Trading product | No |
| Country of manufacture | Finland |

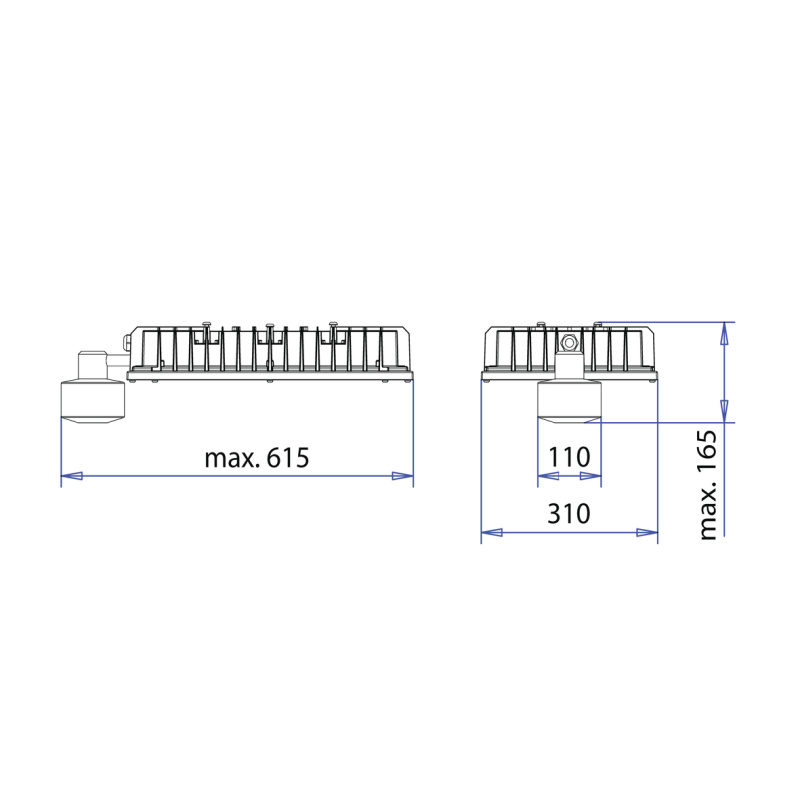

Dimensions
| Package height (mm) | 110 |
| Product weight (Kg) | 7.20 |
| Product width (mm) | 310 |
| Package weight (Kg) | 7.80 |
| Package length (mm) | 790 |
| Product length (mm) | 615 |
| Product height (mm) | 165 |
| Package width (mm) | 330 |
Electrical information
| Voltage (V) | 220-240 |
| Frequency (Hz) | 0/50/60 |
| DC voltage | Yes |
| Inrush time (μs) | 30 |
| Number of ballasts | 2 |
| Number of luminaires per automatic circuit breaker B16A | 10 |
| Number of luminaires per automatic circuit breaker C10A | 9 |
| Power factor | 0.94 |
| Number of luminaires per automatic circuit breaker B10A | 8 |
| Start-up (A) | 37.80 |
| Mains current (A) | 0.94 |
| Input power (W) | 212 |
| Number of luminaires per automatic circuit breaker C16A | 15 |
Light Source
| Luminous flux (luminaire) Ta +25 °C (lm) | 29200 |
| Efficacy of the luminaire Ta +25 °C (lm/W) | 138 |
| Colour rendering index | Ra >80 |
| Energy efficiency class of the light source | E |
| ILCOS code | DS |
| MacAdam value | 3 SDCM |
| Lamp holder | LED module |
| Light source | LED |
| Colour temperature | 4000 K |
| Number of light sources | 6 |
| Efficacy of the luminaire max Ta (lm/W) | 133 |
| Luminous flux (luminaire) max Ta (lm) | 28300 |
Structure and optics
| Corrosivity category of the coating | Suitable for environments classified as C5/very high corrosivity |
| Coating thickness (μm) | 80-100 |
| Body material | 100% recycled die-cast aluminum with a polyester coating |

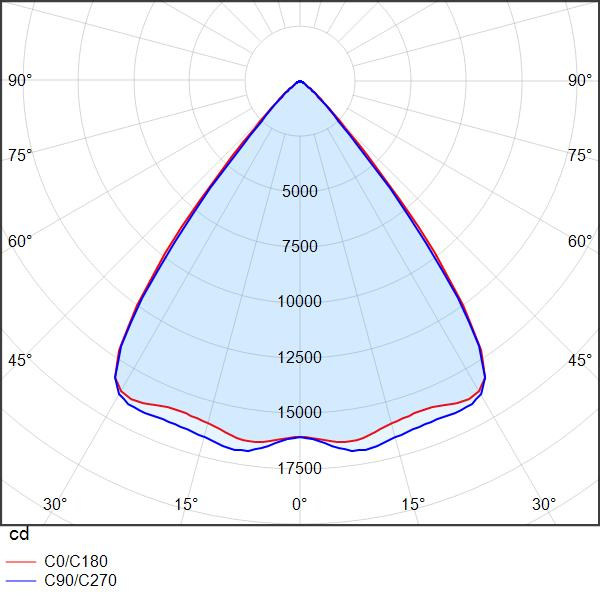

| Light distribution | Wide |
| Colour | Light grey |
| Linkability | No |
| Cover material | Polycarbonate, PC |
| Replaceable LED driver | Yes |
| Filter | Double-effect filter with plastic housing |
| Connection | Cable 1.5 m (3 × 1.5 mm²) |
| Process Bracket | No |
| RAL colour | RAL 7047 |
Technical information
| Control | ON/OFF |
| Ta-class max. (°C) | +40 |
| D-marking | No |
| Protection class | I |
| Ta-class min. (°C) | -40 |
| IP rating | IP65 |
| IK code | IK08 |
