Product number
XE00M03860DJ

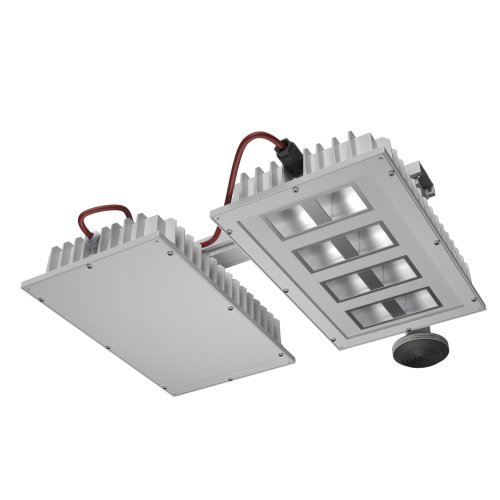

Industrial LED luminaire XENRE60 292 W IP65
The XENRE LED highbay luminaire is an ideal solution for high industrial spaces where extra robustness is required. Typical applications include paper and pulp mills, steel plants and foundries. LED drivers are located in a separate unit. The solution includes a mounting bracket, which allows the luminaire and control modules to be loosened separately for maintenance. The luminaire is equipped with a fast connector. The connecting cable is included in the delivery.
Basic information
Certificates
UKCA;CE
Country of manufacture
Finland
Estimated delivery time from factory
2 - 3 weeks
Installation
Surface mounting
Wind surface (m²)
0.35
Technical information
IK code
IK08
IP rating
IP65
Control
DALI-2, ON/OFF
D-marking
No
Protection class
I
Ta-class max. (°C)
+60
Ta-class min. (°C)
-40
Electrical information
Number of luminaires per automatic circuit breaker B10A
7
Number of luminaires per automatic circuit breaker B16A
11
Number of luminaires per automatic circuit breaker C10A
7
Number of luminaires per automatic circuit breaker C16A
11
DC voltage
Yes
Frequency (Hz)
0/50/60
Input power (W)
292
Mains current (A)
1.24
Number of ballasts
2
Power factor
0.97
Start-up (A)
10.00
Inrush time (μs)
900
Voltage (V)
220-240
Light Source
Colour temperature
4000 K
Efficacy of the luminaire max Ta (lm/W)
116
Efficacy of the luminaire Ta +25 °C (lm/W)
127
Energy efficiency class of the light source
D
ILCOS code
DS
Lamp holder
LED module
Light source
LED
Luminous flux (luminaire) max Ta (lm)
33900
Luminous flux (luminaire) Ta +25 °C (lm)
37100
MacAdam value
3 SDCM
Number of light sources
8
Colour rendering index
Ra >80
Structure and optics
Body material
100% recycled die-cast aluminum with a polyester coating
RAL colour
RAL 7047
Colour
Light grey
Coating thickness (μm)
80-100
Connection
Cable 1.5 m (5 × 1.5 mm²)
Corrosivity category of the coating
Suitable for environments classified as C5/very high corrosivity
Cover material
Tempered safety glass, clear
Filter
Dust filter

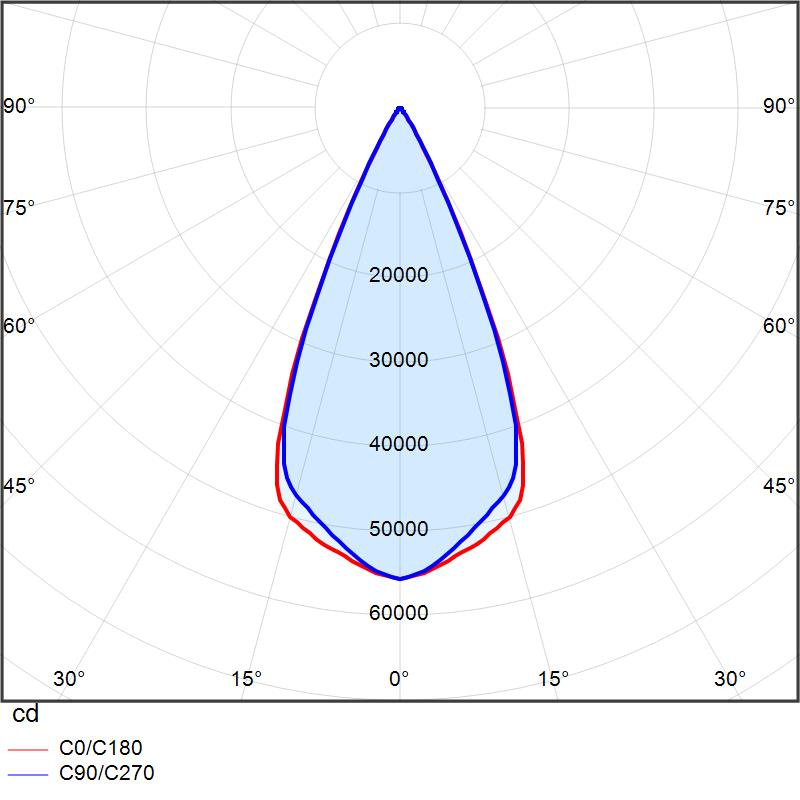

Light distribution
Medium wide
Linkability
No
Replaceable LED driver
Yes

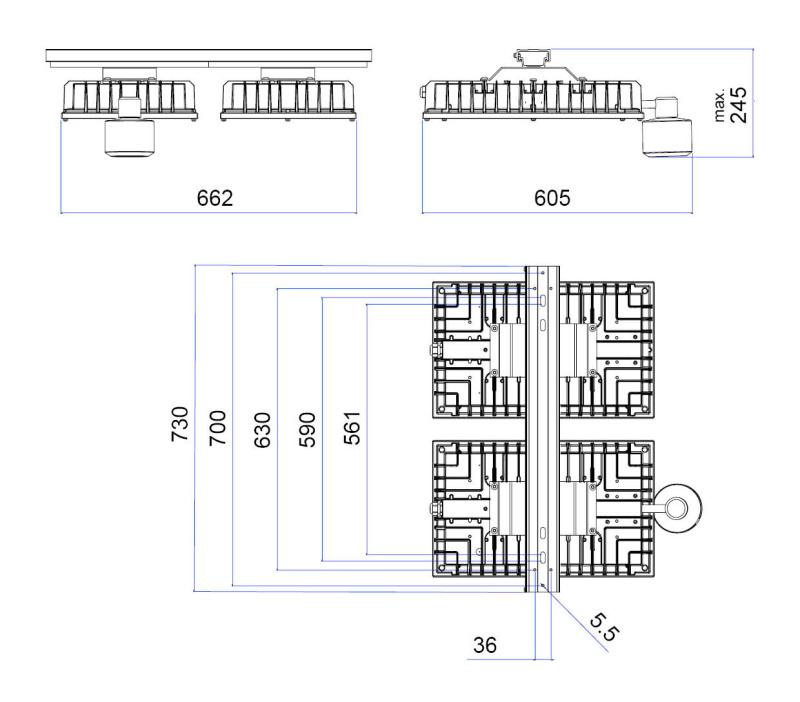

Dimensions
Product height (mm)
190
Product length (mm)
714
Product weight (Kg)
16.20
Product width (mm)
605
Package height (mm)
180
Package length (mm)
740
Package weight (Kg)
17.10
Package width (mm)
620
Additional information
Calculated lifetime Ta 25 °C L80 (h)
100000
Calculated lifetime Ta max L70 (h)
61300
Storage RH% Max.
85 (Not condensed)
Warranty
5 years
