Product number
XE00X13670DJ

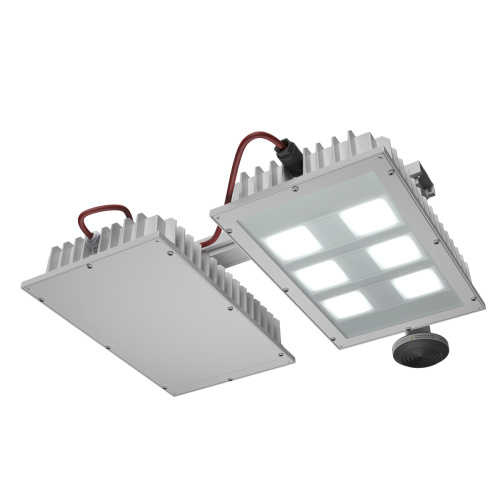

Industrial LED luminaire XENRE70 176 W IP65
The XENRE LED highbay luminaire is an ideal solution for high industrial spaces where extra robustness is required. Typical applications include paper and pulp mills, steel plants and foundries. LED drivers are located in a separate unit. The solution includes a mounting bracket, which allows the luminaire and control modules to be loosened separately for maintenance. The luminaire is equipped with a fast connector. The connecting cable is included in the delivery.
Additional information
| Warranty | 5 years |
| Confirmed data | Yes |
| Storage RH% Max. | 85 (Not condensed) |
| Calculated lifetime Ta max L70 (h) | 94500 |
| Calculated lifetime Ta 25 °C L80 (h) | 100000 |
Basic information
| Wind surface (m²) | 0.35 |
| Estimated delivery time from factory | 2 - 3 weeks |
| Trading product | No |
| Country of manufacture | Finland |
| Installation | Surface mounting |
| Recommended Products | No |
| Certificates | UKCA;CE |

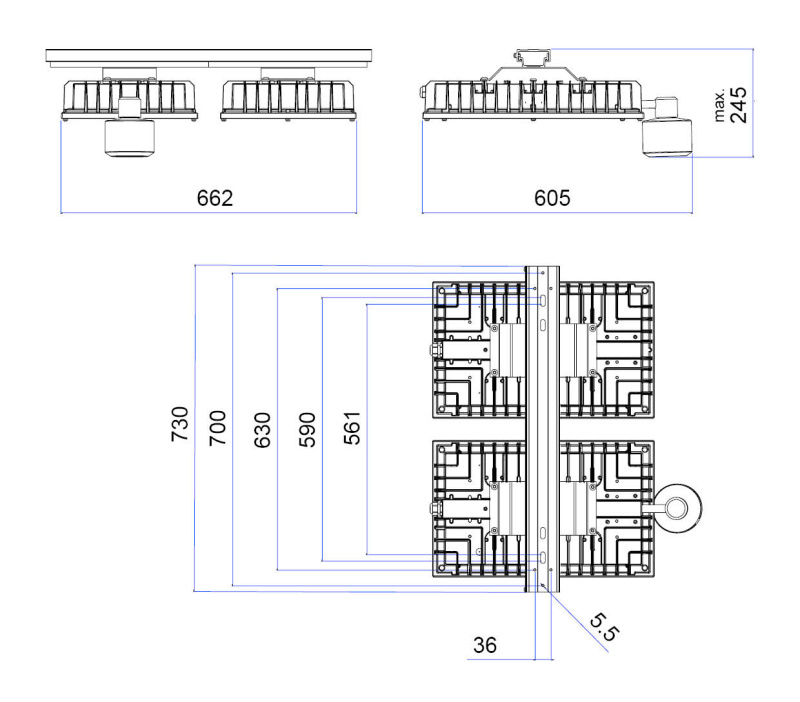

Dimensions
| Product weight (Kg) | 16.00 |
| Package height (mm) | 180 |
| Package weight (Kg) | 16.90 |
| Package length (mm) | 740 |
| Product width (mm) | 605 |
| Product length (mm) | 714 |
| Product height (mm) | 190 |
| Package width (mm) | 620 |
Electrical information
| Voltage (V) | 220-240 |
| DC voltage | Yes |
| Inrush time (μs) | 900 |
| Frequency (Hz) | 0/50/60 |
| Number of ballasts | 2 |
| Number of luminaires per automatic circuit breaker C10A | 11 |
| Number of luminaires per automatic circuit breaker C16A | 17 |
| Mains current (A) | 0.75 |
| Number of luminaires per automatic circuit breaker B16A | 11 |
| Number of luminaires per automatic circuit breaker B10A | 7 |
| Start-up (A) | 10.00 |
| Power factor | 0.95 |
| Input power (W) | 176 |
Light Source
| Luminous flux (luminaire) Ta +25 °C (lm) | 24800 |
| Colour rendering index | Ra >80 |
| ILCOS code | DS |
| Lamp holder | LED module |
| Light source | LED |
| Efficacy of the luminaire Ta +25 °C (lm/W) | 141 |
| Energy efficiency class of the light source | D |
| MacAdam value | 3 SDCM |
| Colour temperature | 4000 K |
| Efficacy of the luminaire max Ta (lm/W) | 128 |
| Luminous flux (luminaire) max Ta (lm) | 22500 |
| Number of light sources | 6 |
Structure and optics

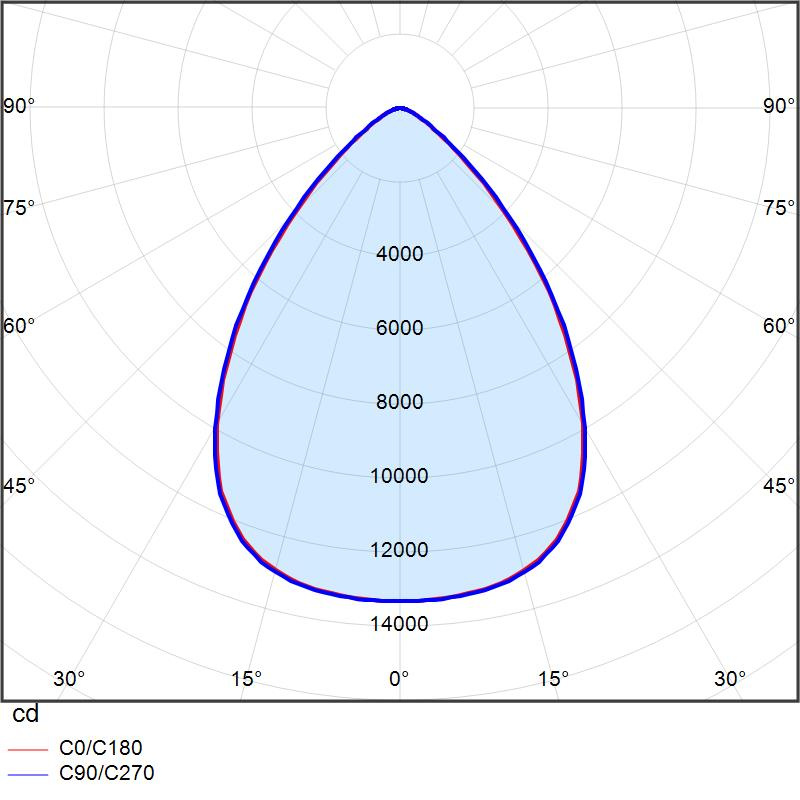

| Light distribution | Wide |
| Corrosivity category of the coating | Suitable for environments classified as C5/very high corrosivity |
| Filter | Dust filter |
| Body material | 100% recycled die-cast aluminum with a polyester coating |
| Coating thickness (μm) | 80-100 |
| Linkability | No |
| Cover material | Tempered safety glass, frosted |
| Replaceable LED driver | Yes |
| Colour | Light grey |
| Connection | Cable 1.5 m (5 × 1.5 mm²) |
| RAL colour | RAL 7047 |
Technical information
| Control | DALI-2, ON/OFF |
| Protection class | I |
| Ta-class min. (°C) | -40 |
| IP rating | IP65 |
| IK code | IK08 |
| D-marking | No |
| Ta-class max. (°C) | +70 |
