Product number
XEC681DH
Control module for 1 luminaire XENRE80 139 W IP65
Separate control module designed for the XENRE80 luminaire. The module is designed for one luminaire unit. The connection cable between the luminaire and the control module is not included in the delivery. The unit can be opened and the LED drivers can be replaced if necessary.
Basic information
Certificates
UKCA;CE
Country of manufacture
Finland
Estimated delivery time from factory
2 - 3 weeks
Wind surface (m²)
0.19
Technical information
IK code
IK08
IP rating
IP65
Control
ON/OFF
D-marking
No
Ta-class max. (°C)
+60
Ta-class min. (°C)
-25
Electrical information
Number of luminaires per automatic circuit breaker B10A
8
Number of luminaires per automatic circuit breaker B16A
11
Number of luminaires per automatic circuit breaker C10A
14
Number of luminaires per automatic circuit breaker C16A
18
DC voltage
Yes
Frequency (Hz)
0/50/60
Input power (W)
139
Mains current (A)
0.60
Number of ballasts
2
Voltage (V)
220-240
Structure and optics
Body material
Polyester-coated aluminium
RAL colour
RAL 7047
Colour
Light grey
Coating thickness (μm)
80-100
Connection
Cable 1.5 m (3 × 1.5 mm²)
Corrosivity category of the coating
Suitable for environments classified as C5/very high corrosivity
Further information about connection
A cable for connecting the luminaire module to the control module is not included in the delivery
Light distribution
Wide
Linkability
No
Replaceable LED driver
Yes

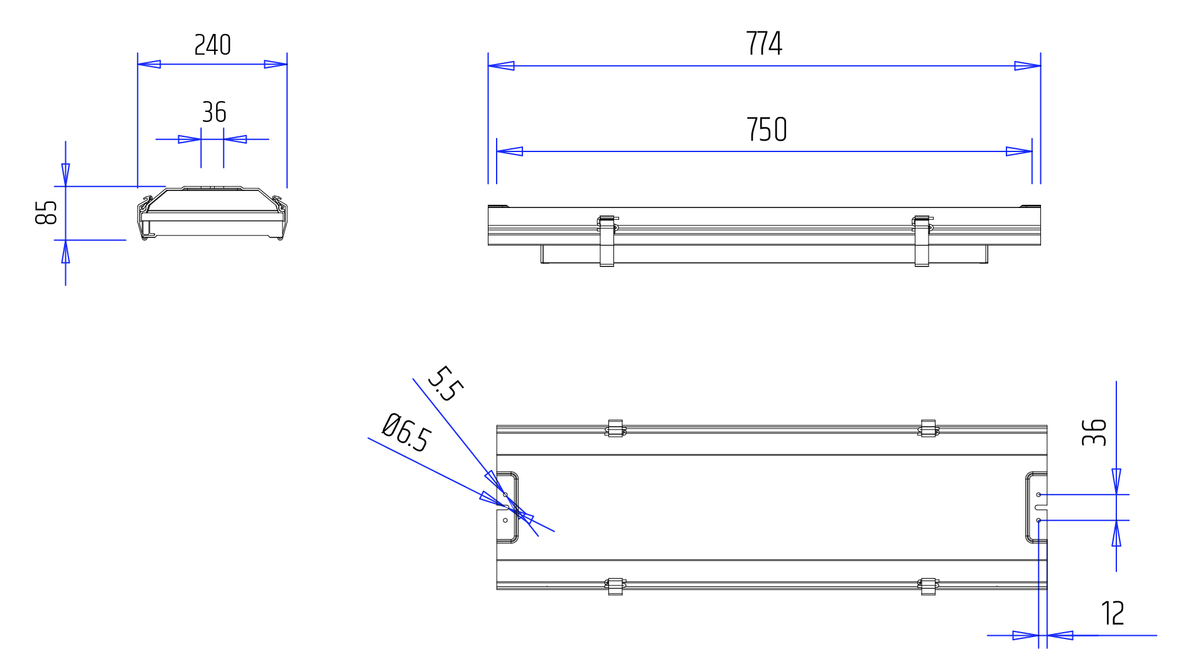

Dimensions
Product height (mm)
85
Product length (mm)
774
Product width (mm)
240
Package height (mm)
190
Package length (mm)
790
Package width (mm)
290
Additional information
Warranty
5 years
