Product number
XEHL01X12

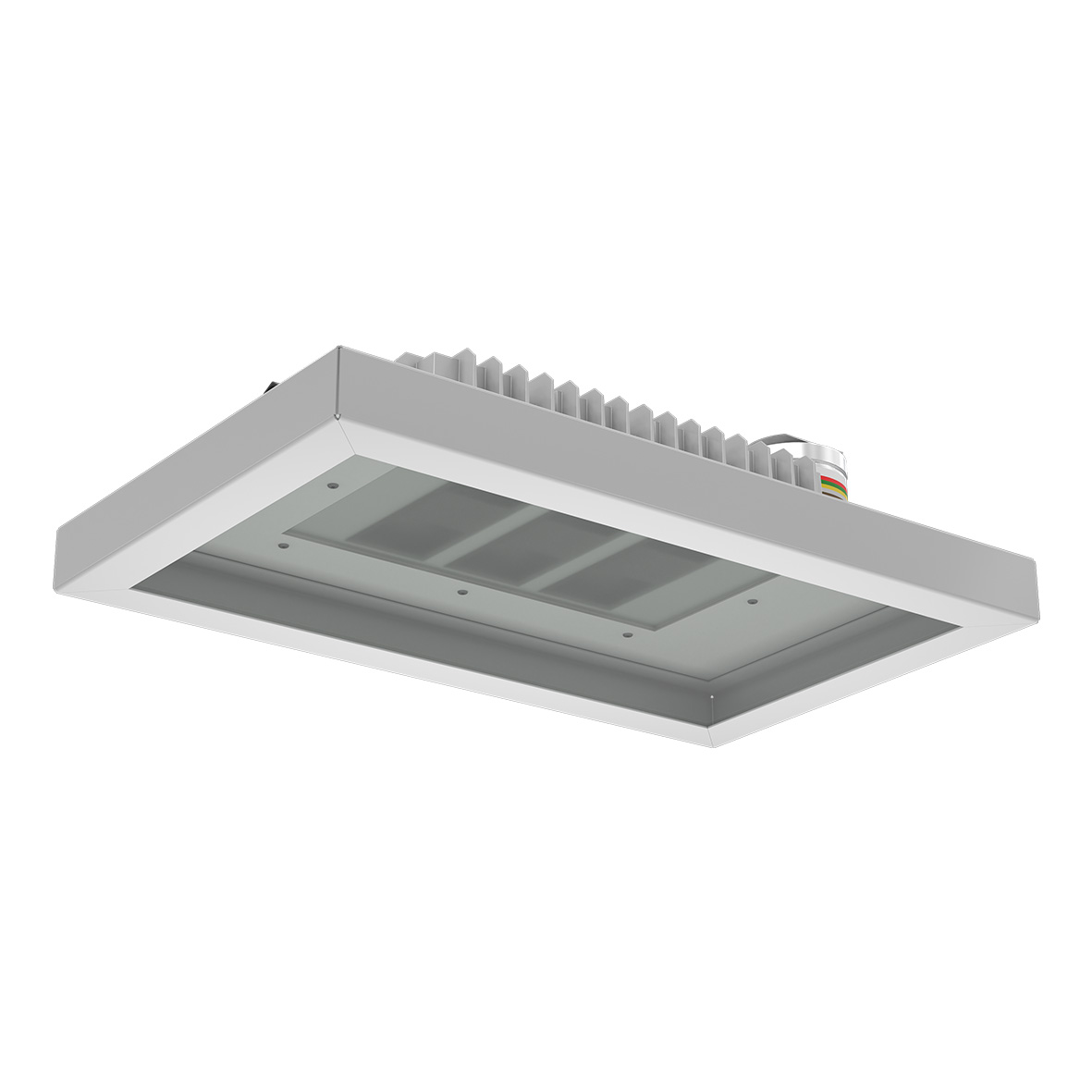

Industrial luminaire, separate light unit XENRE with selective glass 136 W IP66

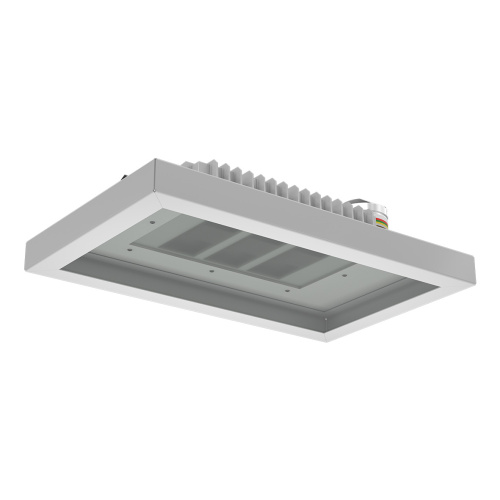

XENRE with selective glass

Engineered to withstand extreme thermal peaks

The I-VALO XENRE LED luminaire with selective glass cover is designed for exceptionally high-temperature environments.

The selective glass features an ultra-thin metal oxide coating that reflects thermal radiation away from the luminaire while allowing light to pass through efficiently. The protective glass cover can be removed when required.

Typical applications include steel mills, foundries, and other demanding industrial environments, such as steel mill cranes handling hot steel plates, where the luminaire may be exposed to intense thermal peaks for short periods.

A separately sold control unit is required and can be installed up to 25 metres from the luminaire. Each control unit supports one or two luminaire modules.

Basic information

Certificates UKCA;CE
Country of manufacture Finland
Estimated delivery time from factory On request
Installation Surface mounting

Technical information

IK code IK08
IP rating IP66
D-marking No
Protection class I
Ta-class max. (°C) +80
Ta-class min. (°C) -40

Electrical information

Input power (W) 136

Light Source

Colour temperature 4000 K
Efficacy of the luminaire max Ta (lm/W) 116
Efficacy of the luminaire Ta +25 °C (lm/W) 131
Energy efficiency class of the light source D
ILCOS code DS
Lamp holder LED module
Light source LED
Luminous flux (luminaire) max Ta (lm) 15900
Luminous flux (luminaire) Ta +25 °C (lm) 17800
MacAdam value 3 SDCM
Number of light sources 6
Colour rendering index Ra >80

Structure and optics

Body material Polyester-coated aluminium
RAL colour RAL 7047
Colour Light grey
Coating thickness (μm) 80-100
Corrosivity category of the coating Suitable for environments classified as C5/very high corrosivity
Cover material Tempered safety glass, frosted + Selective glass
Filter Double-effect filter with metal housing
Light distribution Wide
Linkability No

Dimensions

Product height (mm) 230
Product length (mm) 769
Product weight (Kg) 14.40
Product width (mm) 469

Additional information

Calculated lifetime Ta 25 °C L80 (h) 100000
Calculated lifetime Ta max L80 (h) 70000
Warranty 2 years

Compatible products

XENRE80 XEC881DA
Connection: Pushwire terminals (5 × 2.5 mm² + 2 × 2.5 mm²)
XENRE80 XEC881DB
Connection: Cable and Schuko plug (IP44) 1.5 m
XENRE80 XEC881DB4
Connection: Cable and Schuko plug (IP44) 4 m
XENRE80 XEC881DH
Connection: Cable 1.5 m (3 × 1.5 mm²)
XENRE80 XEC881DH4
Connection: Cable 4 m (3 × 1,5 mm²)
XENRE80 XEC881DJ
Connection: Cable 1.5 m (5 × 1.5 mm²)
XENRE80 XEC881DJ4
Connection: Cable 4 m (5 × 1.5 mm²)
XENRE80 XEC881DD
Connection: Cable and CEE plug (IP44) 1.5 m
XENRE80 XEC881DD4
Connection: Cable and CEE plug (IP44) 4 m
XENRE80 XEC881DF
Connection: Cable and CEE plug (IP67) 1.5 m (3 × 1.5 mm²)
XENRE80 XEC881DF4
Connection: Cable and CEE plug (IP67) 1.5 m (5 × 1.5 mm²)
XENRE80 XEC882DA
Connection: Pushwire terminals (5 × 2.5 mm² + 2 × 2.5 mm²)
XENRE80 XEC882DB
Connection: Cable and Schuko plug (IP44) 1.5 m
XENRE80 XEC882DB4
Connection: Cable and Schuko plug (IP44) 4 m
XENRE80 XEC882DH
Connection: Cable 1.5 m (3 × 1.5 mm²)
XENRE80 XEC882DH4
Connection: Cable 4 m (3 × 1,5 mm²)
XENRE80 XEC882DJ
Connection: Cable 1.5 m (5 × 1.5 mm²)
XENRE80 XEC882DJ4
Connection: Cable 4 m (5 × 1.5 mm²)
XENRE80 XEC882DD
Connection: Cable and CEE plug (IP44) 1.5 m
XENRE80 XEC882DD4
Connection: Cable and CEE plug (IP44) 4 m
XENRE80 XEC882DF
Connection: Cable and CEE plug (IP67) 1.5 m (3 × 1.5 mm²)
XENRE80 XEC882DF4
Connection: Cable and CEE plug (IP67) 1.5 m (5 × 1.5 mm²)
