Product number
XE20M10863DJ

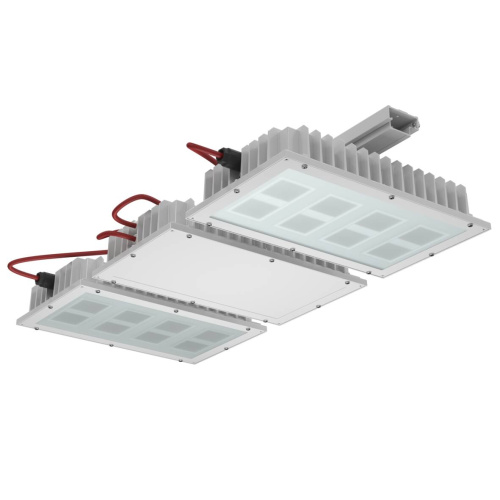

Industrial LED luminaire XENRE XL 584 W IP66
The XENRE XL highbay luminaire is an ideal solution for high industrial spaces where extra robustness is required. Typical applications include paper and pulp mills, steel plants and foundries. LED drivers are located in a separate control module. The solution includes two luminaire modules and a mounting bracket, which allows the luminaire and control modules to be loosened separately for maintenance. The luminaire is equipped with a fast connector. The connecting cable is included in the delivery.
Additional information
| Calculated lifetime Ta 25 °C L70 (h) | 150000 |
| Calculated lifetime Ta max L70 (h) | 61300 |
| Calculated lifetime Ta 25 °C L80 (h) | 100000 |
| Confirmed data | Yes |
| Warranty | 5 years |
Basic information
| Country of manufacture | Finland |
| Wind surface (m²) | 0.53 |
| Estimated delivery time from factory | 3 - 5 weeks |
| Recommended Products | No |
| Certificates | UKCA;CE |

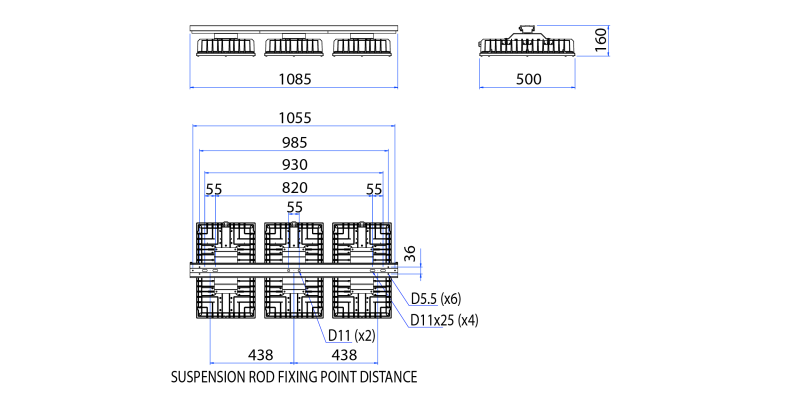

Dimensions
| Package height (mm) | 190 |
| Package weight (Kg) | 27.20 |
| Package length (mm) | 1200 |
| Product weight (Kg) | 25.20 |
| Product width (mm) | 500 |
| Product height (mm) | 160 |
| Product length (mm) | 1085 |
| Package width (mm) | 800 |
Electrical information
| Voltage (V) | 220-240 |
| Inrush time (μs) | 900 |
| Frequency (Hz) | 0/50/60 |
| DC voltage | Yes |
| Number of luminaires per automatic circuit breaker C16A | 5 |
| Number of luminaires per automatic circuit breaker C10A | 3 |
| Power factor | 0.99 |
| Number of luminaires per automatic circuit breaker B16A | 5 |
| Number of ballasts | 4 |
| Mains current (A) | 2.50 |
| Input power (W) | 584 |
| Number of luminaires per automatic circuit breaker B10A | 3 |
| Start-up (A) | 20.00 |
Light Source
| Lamp holder | LED module |
| Light source | LED |
| Efficacy of the luminaire Ta +25 °C (lm/W) | 127 |
| Colour rendering index | Ra >80 |
| ILCOS code | DS |
| Luminous flux (luminaire) Ta +25 °C (lm) | 74200 |
| Colour temperature | 4000 K |
| MacAdam value | 3 SDCM |
| Energy efficiency class of the light source | D |
| Luminous flux (luminaire) max Ta (lm) | 67800 |
| Efficacy of the luminaire max Ta (lm/W) | 116 |
| Number of light sources | 16 |
Structure and optics

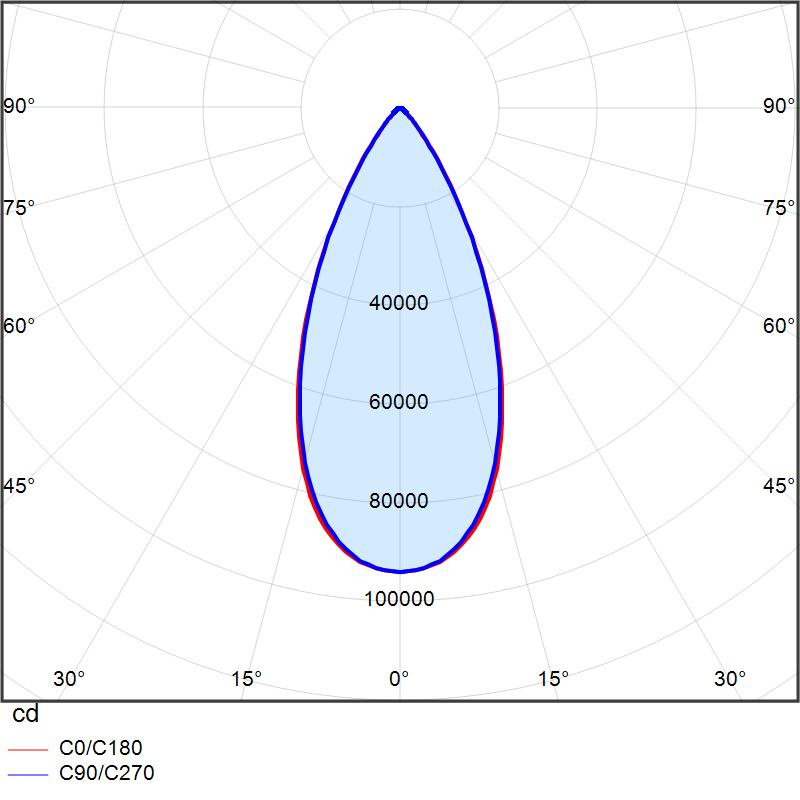

| Light distribution | Medium wide |
| Body material | 100% recycled die-cast aluminum with a polyester coating |
| Filter | GORE filter |
| Coating thickness (μm) | 80-100 |
| Linkability | No |
| Cover material | Tempered safety glass, frosted |
| Replaceable LED driver | Yes |
| Connection | Cable 1.5 m (5 × 1.5 mm²) |
| Corrosivity category of the coating | Suitable for environments classified as C5/very high corrosivity |
| Colour | Light grey |
| RAL colour | RAL 7047 |
Technical information
| IK code | IK08 |
| IP rating | IP66 |
| Control | DALI-2, ON/OFF |
| Ta-class min. (°C) | -40 |
| Ta-class max. (°C) | +60 |
| D-marking | No |
| Protection class | I |
