Product number
LUA230000J

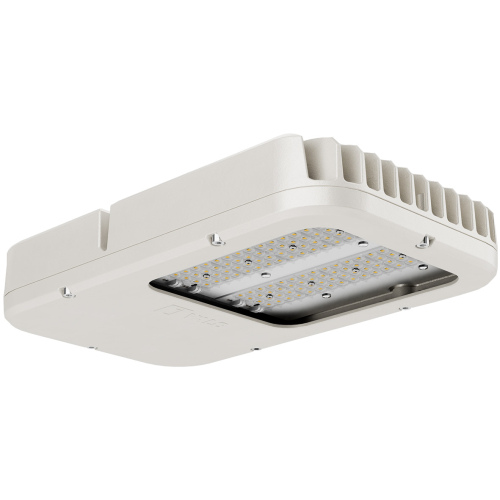

Industrial LED luminaire
LUKA IP67 34 W

An elegant, clean-lined general-purpose luminaire for indoor and outdoor use. The luminaire is suitable for public premises and challenging industrial environments alike. Typical applications for the luminaire include maintenance platforms and staircases, building façades and entrances, and area lighting when mounted on the I-Valo pole, for example. In the product design, the cornerstones were the luminaire’s long service life, energy-efficiency and easy installation and maintenance. The luminaire’s GORE filter protects its interior components against dirt. The pressure-tested, polyester-coated cast-aluminium body, carefully selected high-quality components and effective silicone gaskets ensure that the luminaire retains its luminous efficacy even in challenging conditions. The luminaire’s technology can be replaced (a Fit for the Future product). A variety of mounting options with mounting brackets available by order.

Technical information

Control DALI-2, ON/OFF
D-marking Yes
IK code IK09
IP rating IP67
Protection class I
Ta-class max. (°C) +50
Ta-class min. (°C) -40

Electrical information

DC voltage Yes
Frequency (Hz) 0/50/60
Input power (W) 34
Inrush time (μs) 355
Mains current (A) 0.16
Number of ballasts 1
Number of luminaires per automatic circuit breaker B10A 6
Number of luminaires per automatic circuit breaker B16A 10
Number of luminaires per automatic circuit breaker C10A 10
Number of luminaires per automatic circuit breaker C16A 16
Power factor 0.96
Start-up (A) 32.00
Voltage (V) 220-240

Structure and optics

Body material 100% recycled die-cast aluminum with a polyester coating
Coating thickness (μm) 80-100
Colour Light grey
Connection Cable 1.5 m (5 × 1.5 mm²)
Corrosivity category of the coating Suitable for environments classified as C5/very high corrosivity
Cover material Tempered safety glass, clear
Filter GORE filter

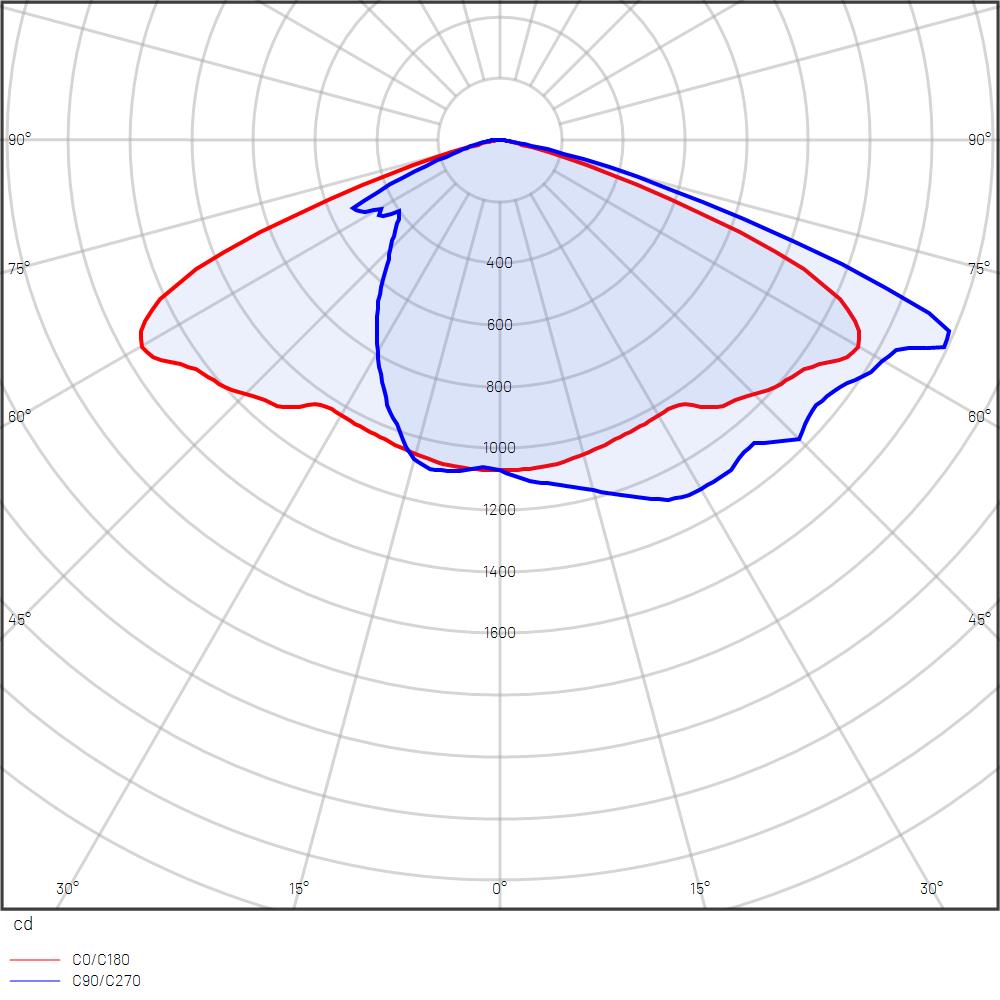

Light distribution Asymmetric
Linkability No
RAL colour RAL 7047
Upgradability Yes

Light Source

Colour rendering index Ra ≥80
Colour temperature 4000 K
Efficacy of the luminaire Ta +25 °C (lm/W) 154
Efficacy of the luminaire max Ta (lm/W) 149
Energy efficiency class of the light source C
ILCOS code DS
Lamp holder LED module
Light source LED
Luminous flux (luminaire) Ta +25 °C (lm) 5250
Luminous flux (luminaire) max Ta (lm) 5050
MacAdam value 3 SDCM
Number of light sources 2

Basic information

Certificates UKCA;ENEC;CE
Country of manufacture Finland
Estimated delivery time from factory 2 - 3 weeks
Installation Surface mounting
Wind surface (m²) 0.18

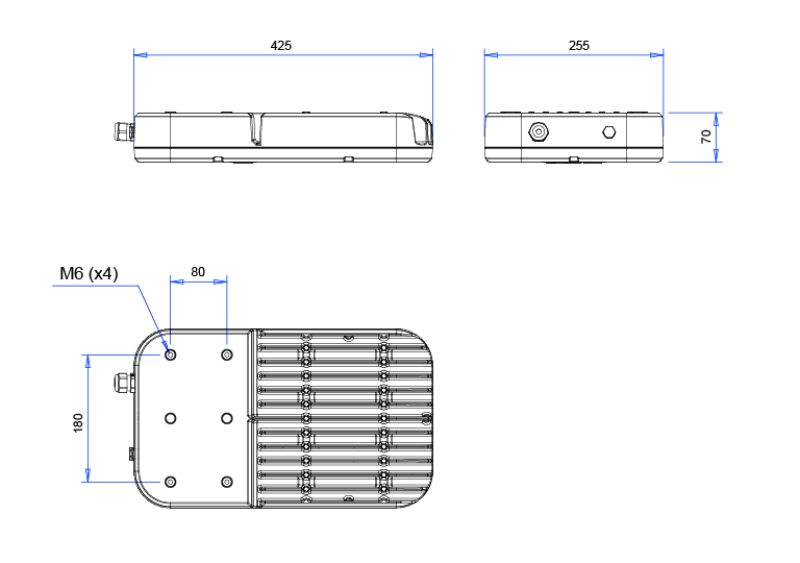

Dimensions

Package height (mm) 105
Package length (mm) 600
Package weight (Kg) 7.00
Package width (mm) 270
Product height (mm) 70
Product length (mm) 425
Product weight (Kg) 6.70
Product width (mm) 255

Additional information

Calculated lifetime Ta 25 °C L80 (h) 80000
Calculated lifetime Ta max L80 (h) 80000
Storage RH% Max. 85 (Not condensed)
Warranty 5 years

Downloads

3D file (.dwg)
3D file (.stp)
DIALux Calculation file (.ldt)
DIALux Calculation file (.uld)
Revit file (.rfa)

Compatible products

LUKA LUA2300 34W
