Product number
6756X100

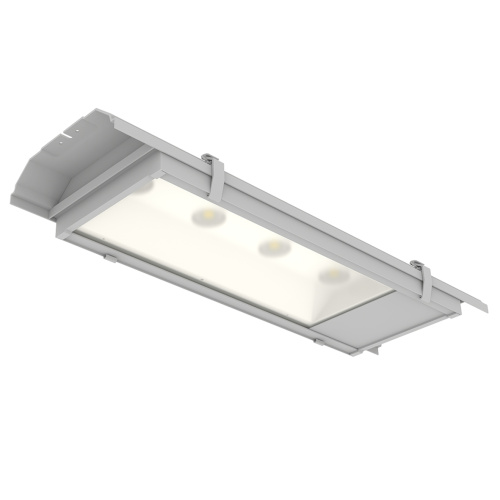

Industrial luminaire, separate light module HITE LED 49 W IP65
HITE LED is a special luminaire designed especially for the hot and humid industrial process facilities. In addition to the luminaire, you need a control module that must be located in a space with a lower temperature. The luminaire is installed by using the separately sold bracket 6066.030.00. The technology of the luminaire is replaceable, which means that the whole luminaire does not need to be replaced when it reaches the end of its lifespan.
Additional information
| Confirmed data | Yes |
| Warranty | 5 years |
| Calculated lifetime Ta max L70 (h) | 87000 |
| Calculated lifetime Ta max L80 (h) | 50000 |
Basic information
| Recommended Products | No |
| Certificates | UKCA;CE |
| Installation | Surface mounting |
| Country of manufacture | Finland |
| Estimated delivery time from factory | 2 - 3 weeks |

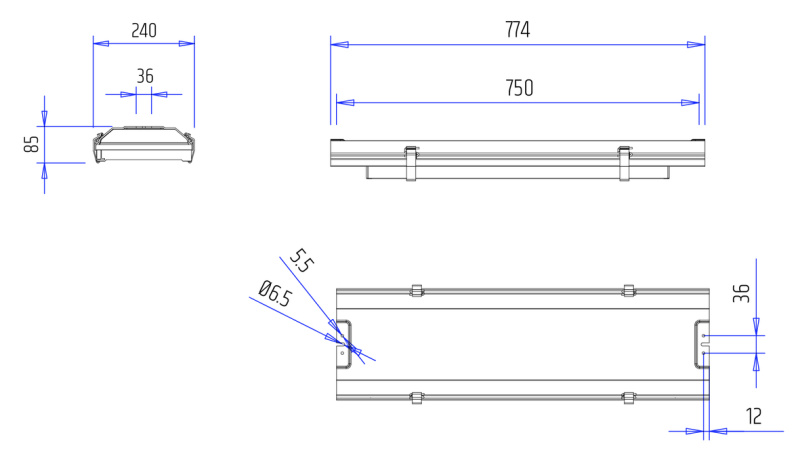

Dimensions
| Product width (mm) | 240 |
| Product weight (Kg) | 7.20 |
| Product height (mm) | 85 |
| Product length (mm) | 774 |
Electrical information
| Mains current (A) | 0.23 |
| Input power (W) | 49 |
Light Source
| MacAdam value | 3 SDCM |
| ILCOS code | DS |
| Colour temperature | 4000 K |
| Efficacy of the luminaire Ta +25 °C (lm/W) | 146 |
| Light source | LED |
| Energy efficiency class of the light source | D |
| Luminous flux (luminaire) Ta +25 °C (lm) | 7150 |
| Lamp holder | LED module |
| Colour rendering index | Ra >80 |
| Efficacy of the luminaire max Ta (lm/W) | 122 |
| Number of light sources | 4 |
| Luminous flux (luminaire) max Ta (lm) | 6000 |
Structure and optics
| Coating thickness (μm) | 80-100 |
| Colour | Grey |
| Upgradability | Yes |
| Filter | Without filter |

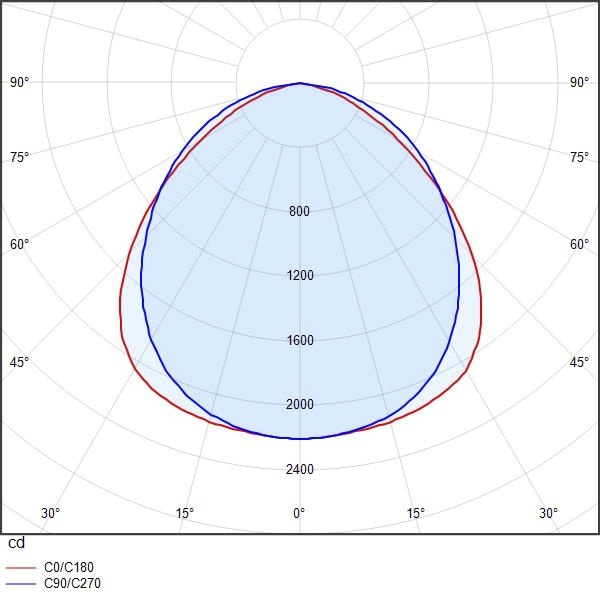

| Light distribution | Wide |
| Body material | Epoxy-coated aluminium |
| Corrosivity category of the coating | Suitable for environments classified as C5/very high corrosivity |
| Linkability | No |
| Cover material | Tempered safety glass, frosted |
| Connection | Screw terminal (3 × 2.5 mm²) |
| RAL colour | RAL 7045 |
Technical information
| IP rating | IP65 |
| IK code | IK08 |
| D-marking | No |
| Protection class | I |
| Ta-class max. (°C) | +110 |
| Ta-class min. (°C) | -40 |
