Product number
C675604A
Control module for 4 luminaires HITE LED 196 W IP65
Separate control module designed for the HITE LED luminaire. The module is designed for four luminaire units. The connection cable between the luminaire and the control module is not included in the delivery.
Basic information
Certificates
UKCA;CE
Country of manufacture
Finland
Estimated delivery time from factory
2 - 3 weeks
Technical information
IK code
IK08
IP rating
IP65
Control
DALI-2, ON/OFF
D-marking
No
Protection class
I
Ta-class max. (°C)
+45
Ta-class min. (°C)
-25
Electrical information
Number of luminaires per automatic circuit breaker B10A
3
Number of luminaires per automatic circuit breaker B16A
5
Number of luminaires per automatic circuit breaker C10A
5
Number of luminaires per automatic circuit breaker C16A
8
DC voltage
Yes
Frequency (Hz)
0/50/60
Input power (W)
196
Mains current (A)
0.86
Number of ballasts
4
Voltage (V)
220-240
Structure and optics
Body material
Epoxy-coated aluminium
RAL colour
RAL 7045
Colour
Grey
Coating thickness (μm)
80-100
Connection
Pushwire terminals (5 × 2,5 mm²)
Corrosivity category of the coating
Suitable for environments classified as C5/very high corrosivity
Linkability
Yes
Upgradability
Yes

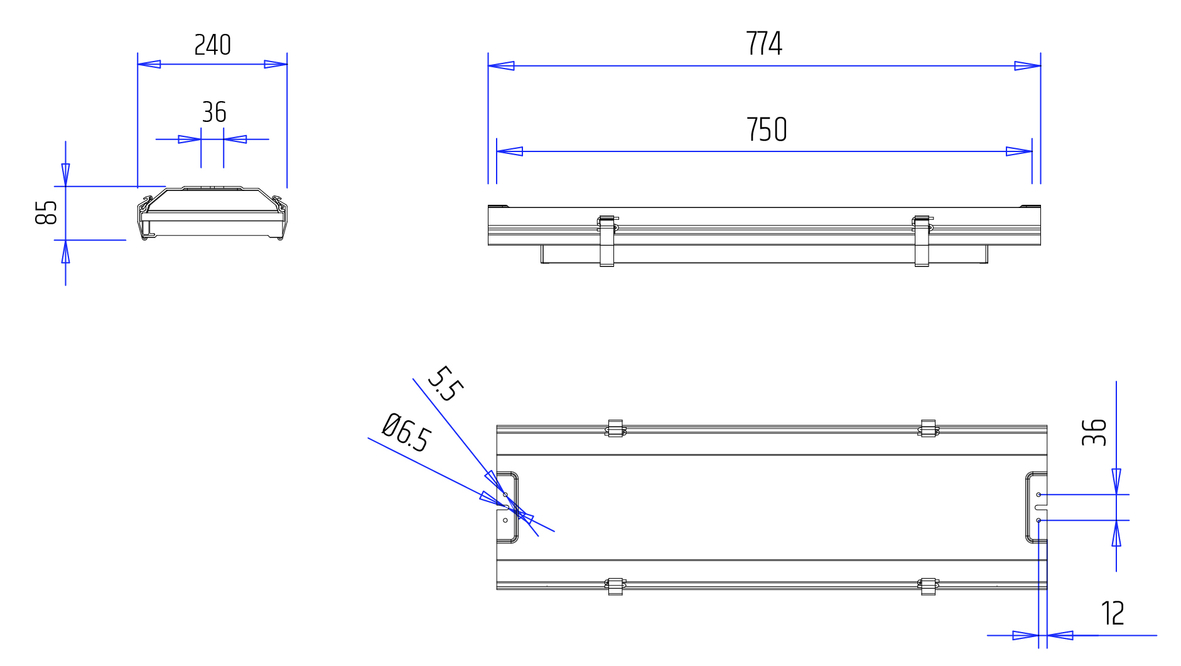

Dimensions
Product height (mm)
85
Product length (mm)
774
Product weight (Kg)
4.90
Product width (mm)
240
Package height (mm)
97
Package length (mm)
790
Package width (mm)
240
Additional information
Warranty
5 years
Downloadable files
Compatible products
HITE LED 6756X100
Connection: Screw terminal (3 × 2.5 mm²)
HITE LED 6756X90004
Connection: Screw terminal (3 × 2.5 mm²)
HITE LED 6756X90005
Connection: Screw terminal (3 × 2.5 mm²)
