Custom Industrial Lighting Solutions

Industrial lighting built for environments where reliability is critical

Lighting solutions built for your needs

When standard lighting solutions are not enough, I-Valo designs and manufactures custom industrial luminaires tailored to your exact application.

Our custom-made lighting solutions are engineered to perform reliably in harsh environments where conditions such as heat, dust, vibration, chemicals or mechanical impact place exceptional demands on lighting.

Many industrial environments require lighting solutions that go beyond standard specifications. I-Valo custom luminaires are developed for applications such as:

  • High ambient temperatures or rapidly changing conditions

  • Abrasive environments (e.g. shot blasting, dust, particles)

  • Chemical exposure or corrosive atmospheres

  • Heavy vibration or mechanical stress

  • Limited installation space or special mounting requirements

  • Retrofit projects where existing structures must be utilised

Innovative protection against extreme thermal peaks

Project reference: Steel mill where hot steel plates are lifted beneath LED luminaires

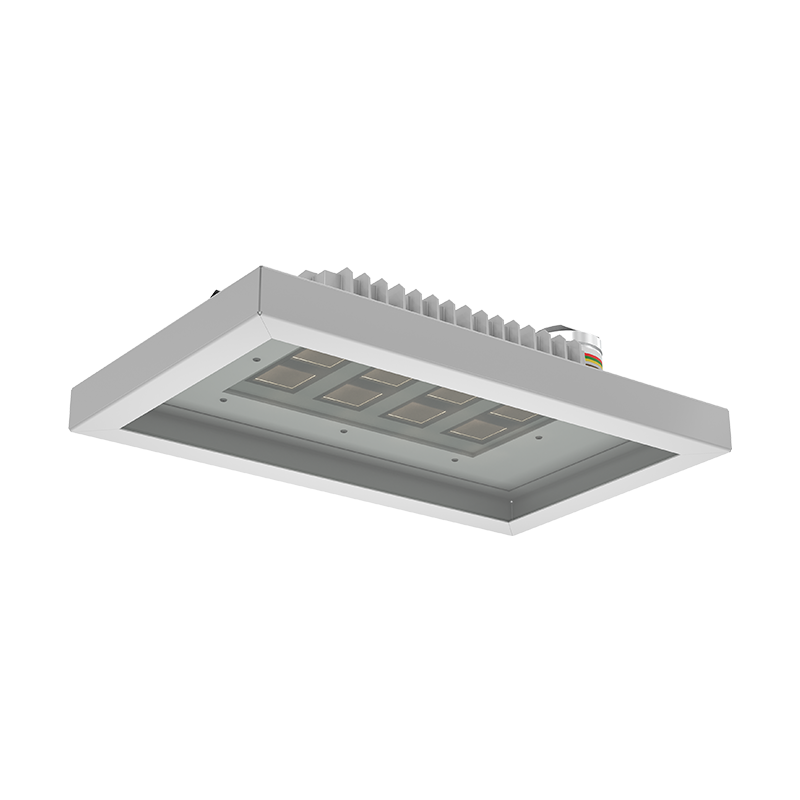

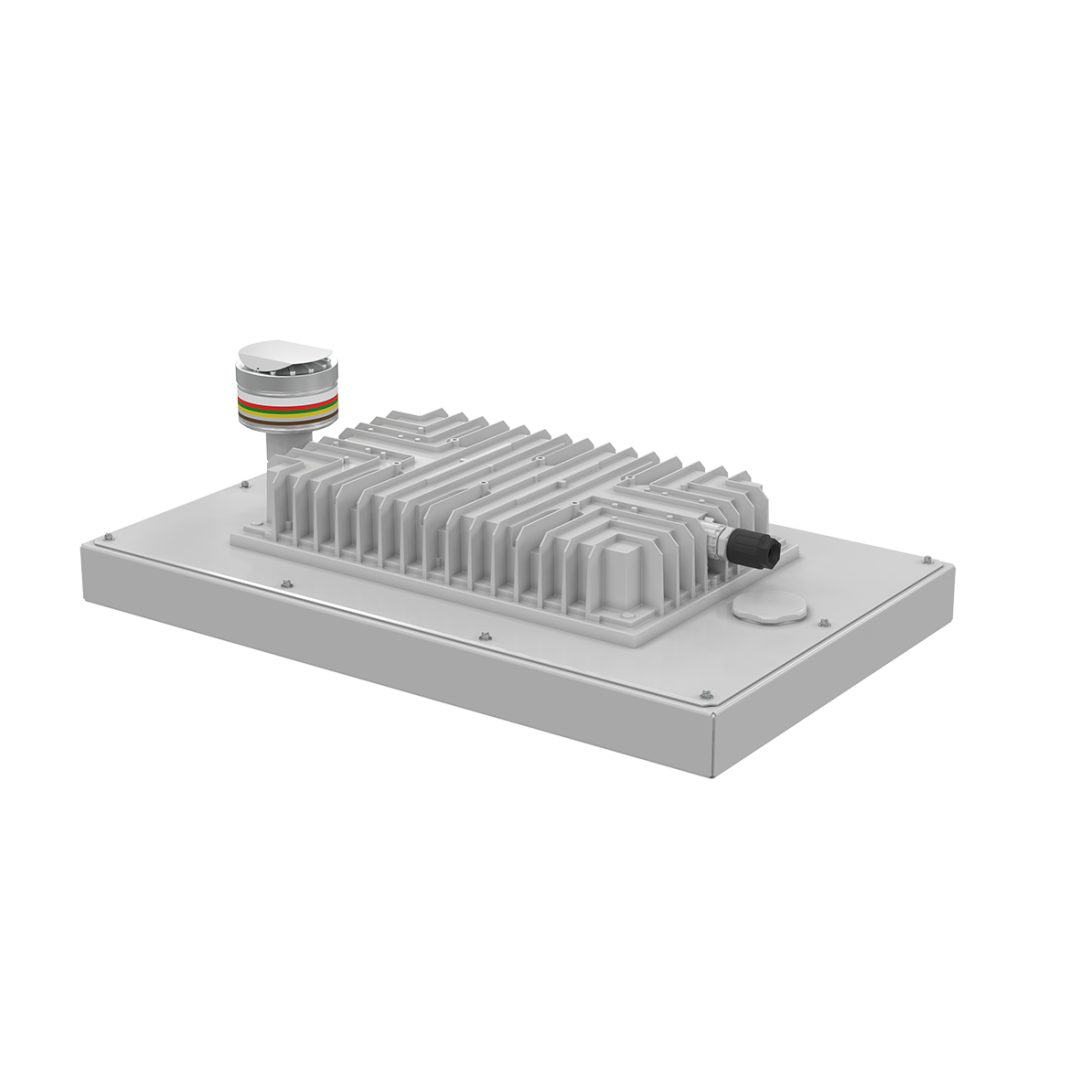

The XENRE luminaire is designed for extremely hot conditions and features an innovative protective enclosure made of selective glass. The very thin metal oxide coating on the selective glass reflects heat radiation away from the luminaire while allowing light to pass through. The protective enclosure can be removed if required.

Typical applications include steel mills and foundries, where the luminaire may be exposed to short bursts of extreme heat.

The luminaire’s standard ambient operating temperature rating is Ta +80 °C. At sites where we have supplied this solution, steel plates at temperatures exceeding 1,200 °C have been transported beneath the luminaires. The thermal load on the luminaire must be calculated separately for each installation. Please contact our Sales Team to discuss your application.

In addition to the luminaire, a control unit sold separately is required. The unit can be installed up to 25 m away from the luminaire. One or two luminaire modules can be connected to each control unit.

Product number Input power (W) Files
XEHL01M02 137
Filter Double-effect filter with metal housing Luminous flux (luminaire) max Ta (lm) 15600 Colour temperature 4000 K Cover material Tempered safety glass, clear + Selective glass IP rating IP66 Light distribution Medium wide
XEHL01M12 137
Filter Double-effect filter with metal housing Luminous flux (luminaire) max Ta (lm) 15600 Colour temperature 4000 K Cover material Tempered safety glass, frosted + Selective glass IP rating IP66 Light distribution Medium wide
XEHL01X02 136
Filter Double-effect filter with metal housing Luminous flux (luminaire) max Ta (lm) 15900 Colour temperature 4000 K Cover material Tempered safety glass, clear + Selective glass IP rating IP66 Light distribution Wide
XEHL01X12 136
Filter Double-effect filter with metal housing Luminous flux (luminaire) max Ta (lm) 15900 Colour temperature 4000 K Cover material Tempered safety glass, frosted + Selective glass IP rating IP66 Light distribution Wide

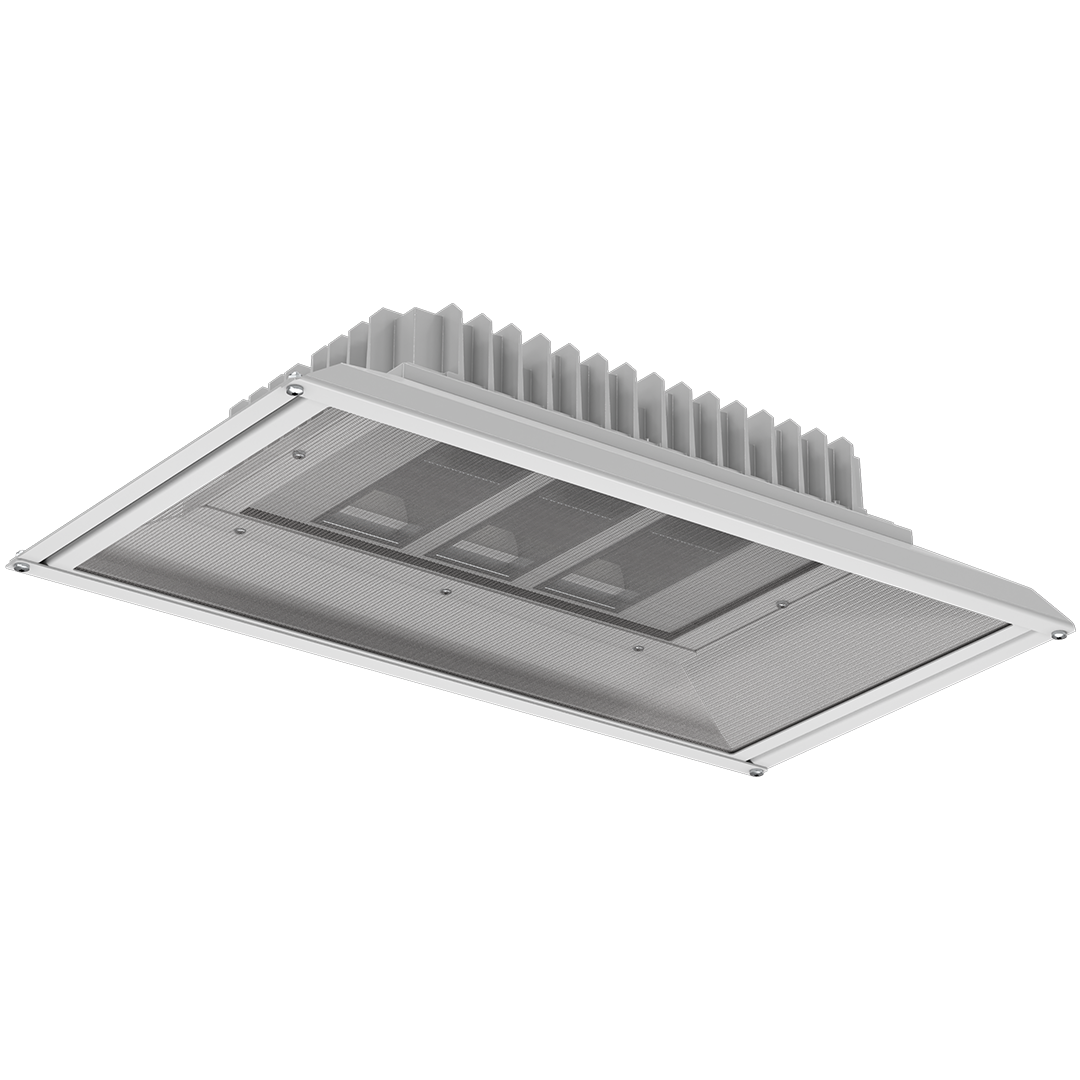

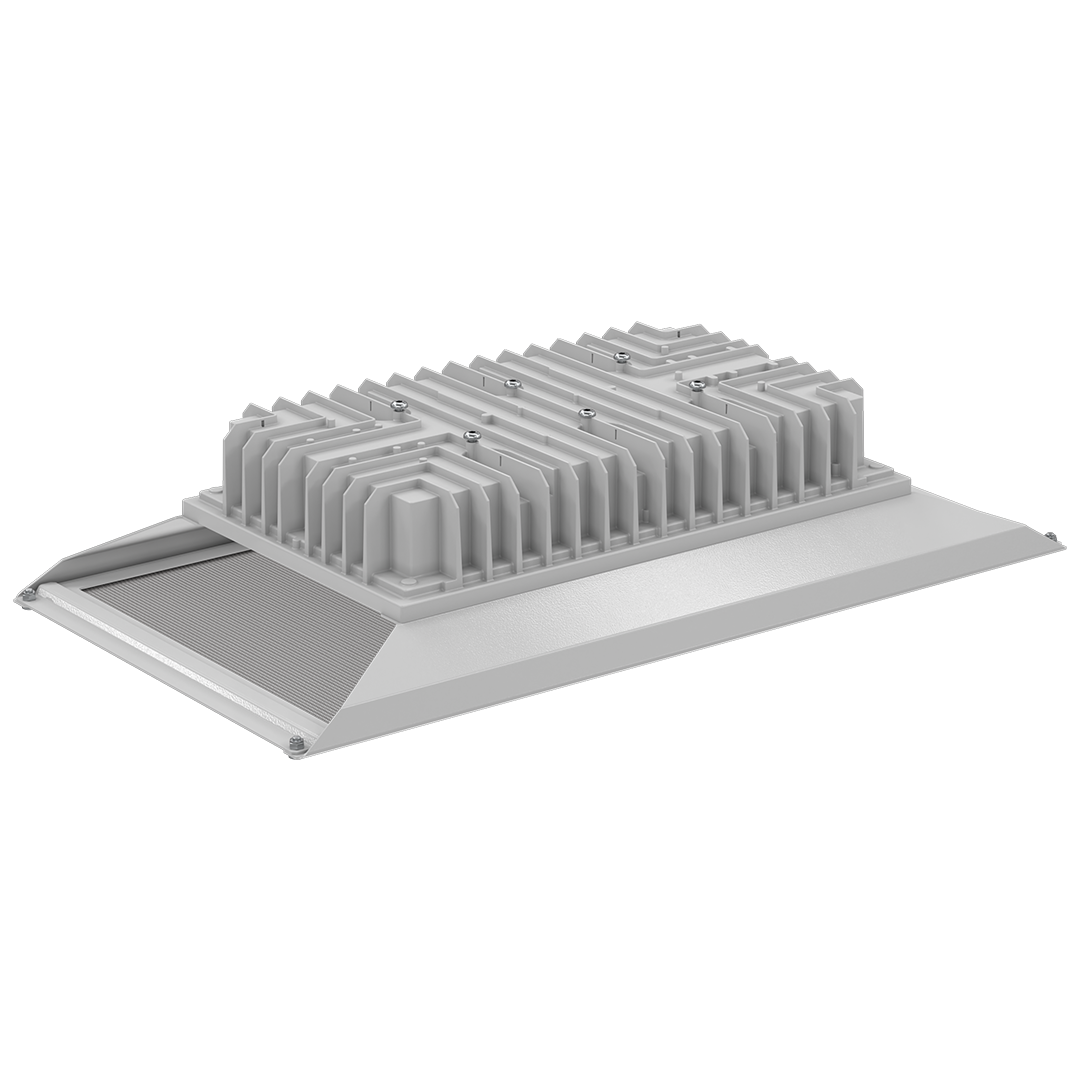

XENRE with protective mesh – Solution for blasting environments

The I-Valo XENRE luminaire with protective frame and metal mesh is specifically designed for use in abrasive blasting environments where conventional luminaires are exposed to continuous mechanical stress from high-velocity particles.

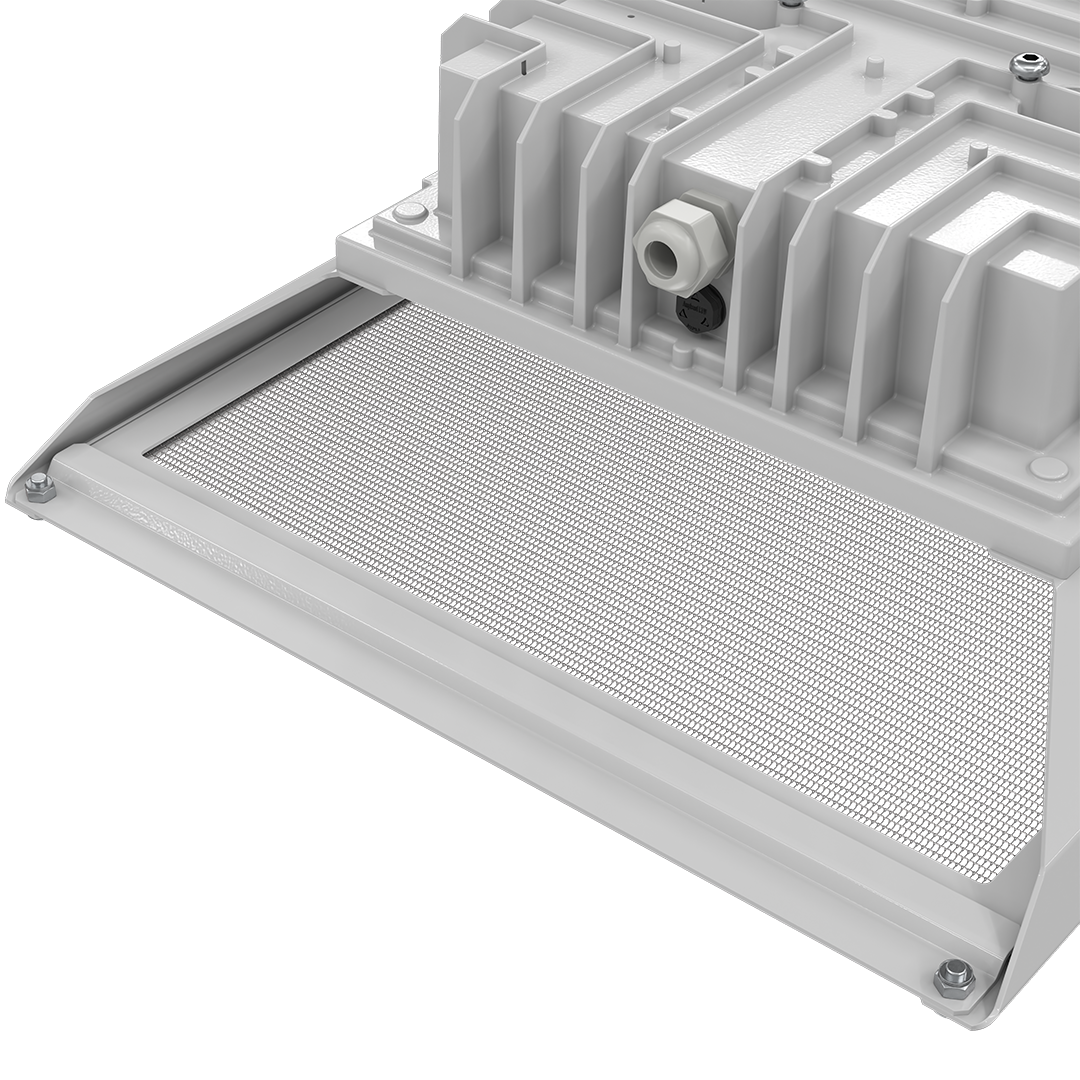

The integrated protective frame with metal mesh shields the luminaire’s enclosure glass from direct impact, significantly reducing the risk of damage in applications such as shot blasting rooms, blasting cabinets and surface treatment facilities. This makes the luminaire particularly suitable for environments where abrasive media is constantly in motion.

Based on the robust XENRE platform, the luminaire combines durable mechanical construction, high-quality components and reliable optical performance. It is engineered to operate in harsh industrial conditions, including dust, vibration and elevated ambient temperatures.

The solution enables:

  • Improved durability in abrasive environments
  • Reduced maintenance needs and downtime
  • Extended service life of the luminaire
  • Reliable lighting performance in critical process areas

Typical applications include:

  • Shot blasting rooms and cabinets
  • Surface treatment and finishing lines
  • Steel and metal processing facilities
  • Shipyards and heavy industry
  • Infrastructure and maintenance workshops
Product number Connection Input power (W) Files
XES67X002CJ Cable 1.5 m (3 × 1.5 mm²) 212
Filter Double-effect filter with metal housing Luminous flux (luminaire) max Ta (lm) 19000 Colour temperature 4000 K Control ON/OFF Cover material Tempered safety glass, clear IP rating IP66 Light distribution Wide
XES67X002CJ4 Cable 4 m (3 × 1,5 mm²) 212
Filter Double-effect filter with metal housing Luminous flux (luminaire) max Ta (lm) 19000 Colour temperature 4000 K Control ON/OFF Cover material Tempered safety glass, clear IP rating IP66 Light distribution Wide
XES67X002DJ Cable 1.5 m (5 × 1.5 mm²) 212
Filter Double-effect filter with metal housing Luminous flux (luminaire) max Ta (lm) 19000 Colour temperature 4000 K Control DALI-2, ON/OFF Cover material Tempered safety glass, clear IP rating IP66 Light distribution Wide
XES67X002DJ4 Cable 4 m (5 × 1.5 mm²) 212
Filter Double-effect filter with metal housing Luminous flux (luminaire) max Ta (lm) 19000 Colour temperature 4000 K Control DALI-2, ON/OFF Cover material Tempered safety glass, clear IP rating IP66 Light distribution Wide
XES87M002CJ Cable 1.5 m (3 × 1.5 mm²) 250
Filter Double-effect filter with metal housing Luminous flux (luminaire) max Ta (lm) 22200 Colour temperature 4000 K Control ON/OFF Cover material Tempered safety glass, clear IP rating IP66 Light distribution Medium wide
XES87M002CJ4 Cable 4 m (3 × 1,5 mm²) 250
Filter Double-effect filter with metal housing Luminous flux (luminaire) max Ta (lm) 22200 Colour temperature 4000 K Control ON/OFF Cover material Tempered safety glass, clear IP rating IP66 Light distribution Medium wide
XES87M002DJ Cable 1.5 m (5 × 1.5 mm²) 250
Filter Double-effect filter with metal housing Luminous flux (luminaire) max Ta (lm) 22200 Colour temperature 4000 K Control DALI-2, ON/OFF Cover material Tempered safety glass, clear IP rating IP66 Light distribution Medium wide
XES87M002DJ4 Cable 4 m (5 × 1.5 mm²) 250
Filter Double-effect filter with metal housing Luminous flux (luminaire) max Ta (lm) 22200 Colour temperature 4000 K Control DALI-2, ON/OFF Cover material Tempered safety glass, clear IP rating IP66 Light distribution Medium wide
Tell us your challenge – we’ll design the solution.

We can arrange a meeting to understand your application and define the right lighting solution for your needs.
