LED EXIT

A durable low-maintenance exit sign and safety luminaire designed for demanding conditions. Excellent for marking and providing emergency lighting for exit routes in process spaces.

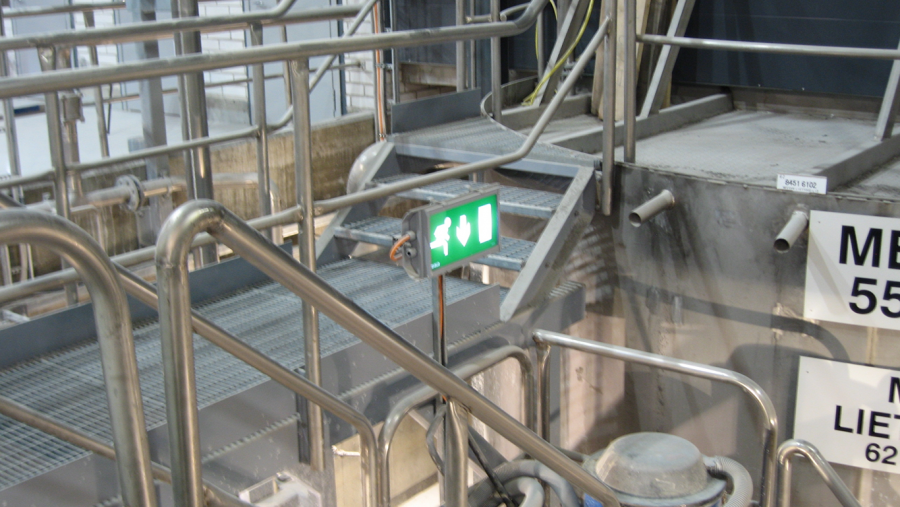

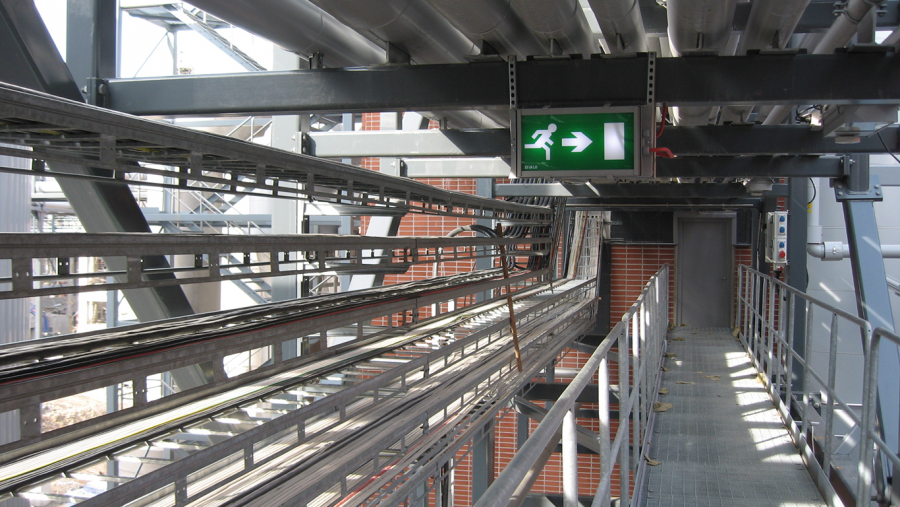

Typically used in paper machine environments, pulp mills, workshops, steel mills, power plants, boilers and storage rooms.

Mounting height 2–5 m.

Basic version:

  • 200...240 V
  • 0/50...60 Hz
  • Connected load 3.5 W

Batteries:

  • 220...240 V
  • 50...60 Hz
  • Connected load 4 W
  • Battery life 3 h
  • Battery charging time 12 h
  • Deep discharge protection
  • Limits power automatically when needed so that 3 h will be achieved

Basic battery:

  • Switches automatically to battery use
  • Equipped with a test switch that can be used to test the functioning of the luminaire
  • LED indicating the condition of the luminaire

Pro battery:

  • Switches automatically to battery use
  • LED indicating the condition of the luminaire
  • Controlling and monitoring enabled with DALI interface
  • If DALI interface is not connected, the weekly operating test will start
    automatically, as will the condition and operating test of the battery every 13th week

Accessories:

  • Screen-printed acrylic plates with an arrow can be ordered with three different arrow directions
  • An unprinted white opal acrylic plate is also available for safety lighting use (product number 14070)
  • The product number of a luminaire with an unprinted white opal acrylic plate is 9701.000.00

Pushwire terminals 5X + 2X
  • Screwless terminal block -o- 5 × 2.5 mm² + 2 × 2.5 mm²
  • Linkable
  • Free inlets plugged
