LUKA
An elegant, clean-lined general-purpose luminaire for indoor and outdoor use. The luminaire is suitable for public premises and challenging industrial environments alike. Typical applications for the luminaire include maintenance platforms and staircases, building façades and entrances, and area lighting when mounted on the I-Valo pole, for example. In the product design, the cornerstones were the luminaire’s long service life, energy-efficiency and easy installation and maintenance. The luminaire’s GORE filter protects its interior components against dirt and moist. The pressure-tested, polyester-coated cast-aluminium body, carefully selected high-quality components and effective silicone gaskets ensure that the luminaire retains its luminous efficacy even in challenging conditions. The luminaire’s technology can be replaced (a Fit for the Future product). A variety of mounting options with mounting brackets available by order.
- Upgradable LED technology
- Ta class: -40 °C...+45/55/60 °C
- Power: 34 W, 49 W, 68 W, 101 W
- Luminous flux: 5050 lm to 15800 lm
- Luminous efficacy of the luminaire: up to 166 lm/W @ Ta max. (172 lm/W @ Ta +25 °C)
- Colour temperature: 4000K (2200K, 2700K and 3000K color temperatures available on request)
- Colour rendering index: CRI 80
- MacAdam value: 3SDCM
- Enclosure class: IP67
- Light distribution: wide, medium, and asymmetric
- Filter: PTFE (GORE)
- Body material: polyester-coated cast aluminium
- Cover material: clear tempered safety glass, acrylic (PMMA), or polycarbonate (PC)
- Supplied with connecting cable

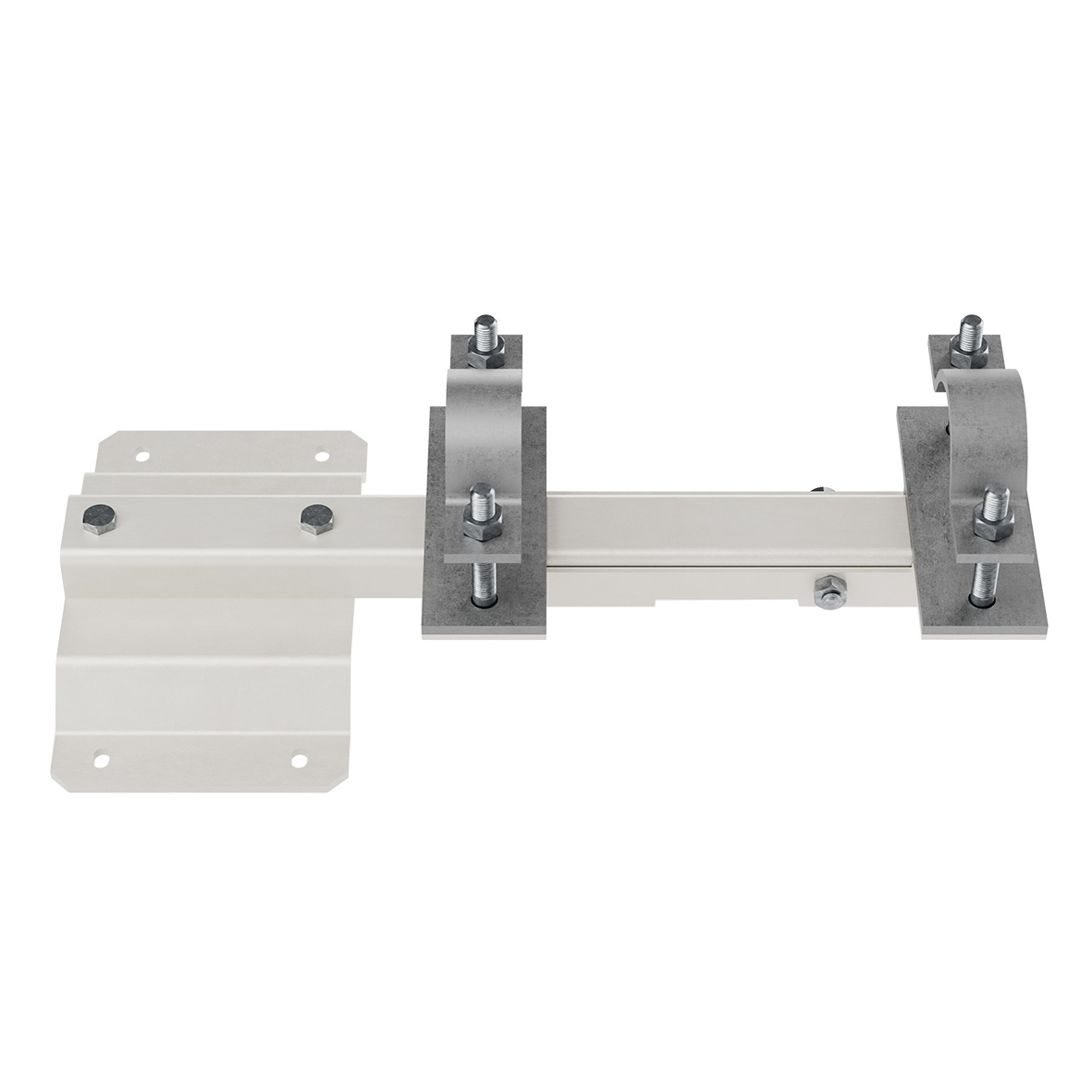

- Mounting brackets to be ordered separately
Downloads
Cable 3X
- Cable 1.5 m (3 × 1.5 mm²)
- Cable 4 m (3 × 1.5 mm²)
- Free inlets plugged
Cable 5X
- Cable 1.5 m (5 × 1.5 mm²)
- Cable 4 m (5 × 1.5 mm²)
- Free inlets plugged
QPD fast connection 3X
- QPD fast connection + 4 m cable (3 × 1.5 mm²)
- Phoenix Contact
- Free inlets plugged
QPD fast connection 5X
- QPD fast connection + 4 m cable (5 × 1.5 mm²)
- Phoenix Contact
- Free inlets plugged
Schuko plug
- Schuko plug + 1.5 m cable (3 × 1.5 mm²)
- Schuko plug + 4 m cable (3 × 1.5 mm²)
LUKA M GL - Medium wide - Clear glass
LUKA X GL - Wide - Clear glass
LUKA A GL - Asymmetric - Clear glass
