Veko Linear Lightsystems

Our Dutch sister company Veko Lightsystems designs and manufactures top-quality high-efficiency linear LED luminaires for various applications.

Veko | Industrial

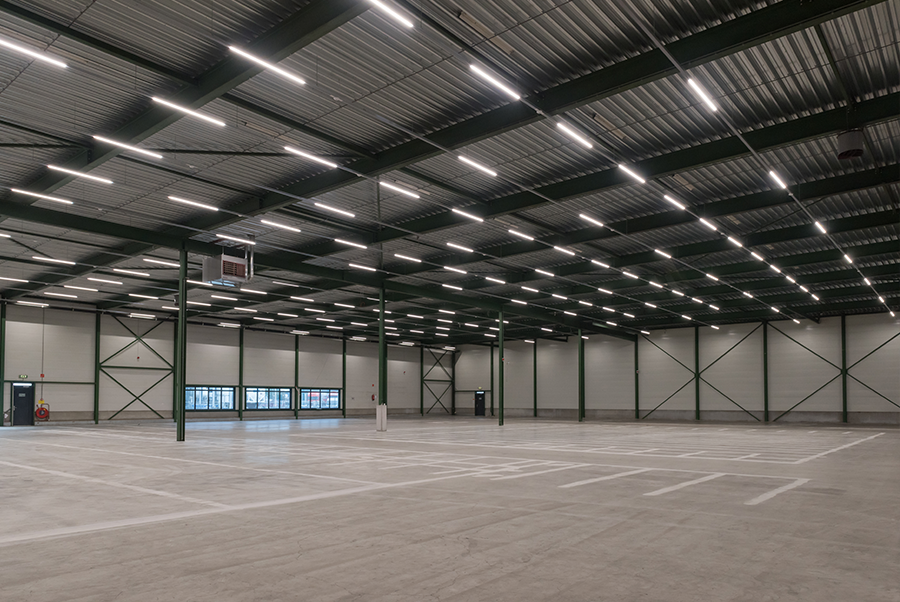

Both the Magnus and Duncan offer worry-free lighting for years. The clean-lined and seamless linear LED luminaires can be installed in every conceivable industrial space. From workstations and distribution halls to production areas and warehouses, Veko has the ideal solution for every application.

Above all industrial lighting needs to be multifaceted. Every industrial space has a different layout, and even that can change over time. Veko offers solutions from high storage stacks and low mezzanine floors to large open areas. In combination with sensors and our light management system, Veko is your perfect lighting partner for energy saving and building management. For industrial applications Veko developed the Magnus and the Duncan. The Magnus and Duncan are both multifaceted profiles with a range of lenses suitable for several applications (IP20, IP40, IP54, and IP65). Determine which optics meet your lighting requirements on the basis of the space to be illuminated.

Magnus
The Magnus offers a solution for every conceivable industrial space. The energy-efficient Magnus excels by its simplicity and can be programmed down to the very last lux. By applying aluminium end caps, the luminaires can be connected together. The Magnus is multifunctional and forms the basis of the Veko line lighting.

IP code: IP20 - IP40 - IP54 - IP65
Length: 1,030 mm; 1,530 mm; 2,030 mm
Output flux: 1,700 lm - 19,500 lm
Wattage: 11.3 W - 122.4 W
Voltage: 220 - 240 V
Frequency: 50/60 Hz
Power factor: >0.95
Drivers: Signify or Osram
Operational temperature: -25 ºC to +35 ºC (on request higher or lower temperatures possible)
Application: Industrial areas, sports venues, swimming pools, retail and cold stores
Weight: 2.5 - 3.3 kg per m, including profile and accessories
Installation height: 2 m - 20 m
Colour temperature: Natural white (± 4,000 K)
On request other colour temperatures possible (3,000 - 6,500 K)
Colour Rendering Index (CRI): >80 (>90 possible)
Lens options: Narrow, Semi Wide, Wide, X-Wide, Diffuse and Circular
Cover Material: Polycarbonate, PMMA
Material: Brute aluminium
Colour: Brute aluminium, anodized, RAL colours
Impact resistance: IK07 / IK10
Options: DALI, CLO, corridor, emergency lighting (central or decentral)

Duncan
The patented Duncan lighting system is multifunctional. The microprismatic design of the lens optics is wholly unique and does not require a reflector to reduce lens glare. This results in an open, transparent design with optimum light yield combined with maximum comfort. The Duncan has been developed to meet EN standards. All elements can be easily linked to create nice continuous lines without any visible connections.

IP code: IP20 - IP54
Length:500 mm; 1,000 mm; 1,500 mm; 2,000 mm
Output flux: 1,850 - 17,000 lm
Wattage: 11 W - 122 W
Voltage: 220 - 240 V
Frequency: 50/60 Hz
Power factor: >0.95
Drivers: Signify or Osram
Operational temperature: -25 ºC to +35 ºC
Weight: Approx 2.5 kg/m, including profile and accessories
Application: Industrial areas, retail, offices and coldstores
Installation height: 2 m - 20 m
Colour temperature: Natural white (± 4,000 K)
On request other colour temperatures possible (3,000 - 6,500 K)
Colour Rendering Index (CRI): >80 (>90 possible)
Lens options: Narrow, Wide, Lambertian and Diffuse
Cover material: PMMA
Material: Untreated aluminium
Colour: Untreated aluminium, anodized and RAL colours
Impact resistance: IK04
Options: DALI, CLO, corridor, centralized and decentralized emergency lighting

Richard | Parking

Veko's Richard line provides years of trouble-free lighting for your indoor or underground car park. The robust luminaires keep out dust and moisture, the system’s energy efficiency is second to none and the entire space is perfectly lit. The Richard’s wide-beam lamps deliver excellent uniformity at floor level, so that the luminaires can even be mounted directly over the middle of the internal roadway.

The Richard features a aluminium profile designed specially for car parks, in which other parking systems are easily incorporated. Sensors guide the driver smoothly to an available space. The profile is vandal-resistant thanks to its heavy-duty mount. The use of aluminium in our linear lighting also ensures a great temperature management: Veko LED lighting operates effortlessly at ambient temperatures from -25 °C - to 35 °C or even higher. At Veko, an warranty of 10 years is therefore possible.

To save even more on your energy costs, choose a light management system. Thanks to intelligent control, your main and emergency lighting requires less maintenance and the dimming function of the luminaires operates more efficiently.

Veko’s linear lighting is not only some of the most energy-efficient in the world but also the most sustainable. The equipment is supplied with virtually no packaging, is 100 per cent recyclable and is easily refurbished, even after 40 years.
